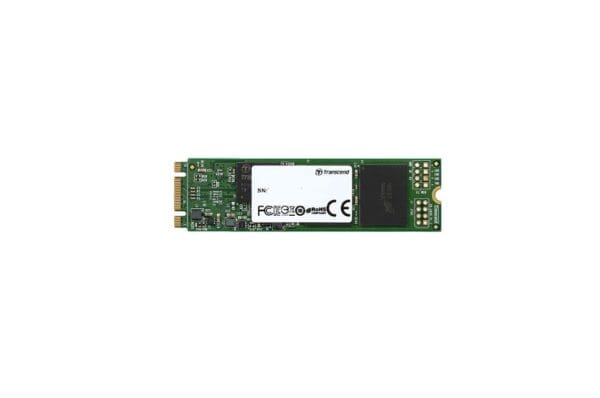

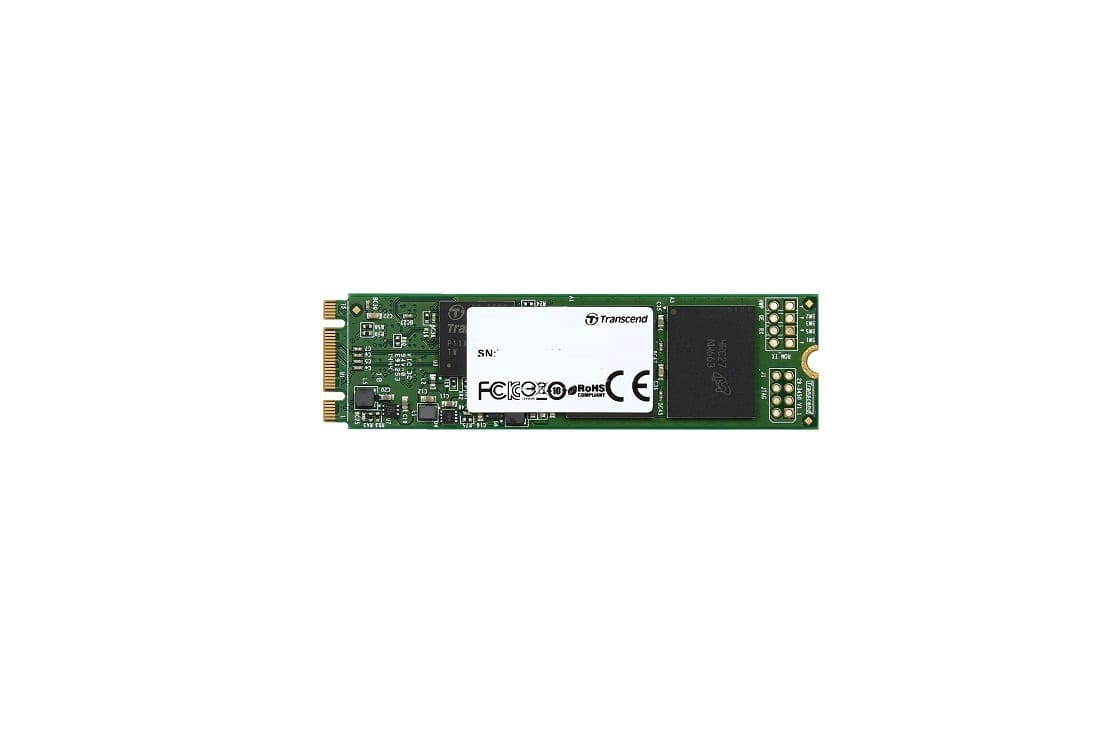

TS256GMTS952T Transcend MTS952T solid state drive 256GB SATA

TS256GMTS952T Overview

Transcend’s MTS952T M.2 SSD features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to BiCS3 NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTS952T is built with DRAM cache for fast access, and it guarantees reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.

Availability: In Stock
SKU:TS256GMTS952T
Brand:

TS256GMTS952T Technical Specifications

Transcend MTS952T solid state drive 256GB SATA

Manufacturer :TRANSCEND
Brand :Transcend
Product Line :Transcend
Model :MTS952T
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :M.2 2280 (double-sided)
Form Factor (metric) :M.2 2280 (double-sided)
Form Factor (Short) :M.2
Form Factor (Short) (metric) :M.2
Storage Interface :Serial ATA-600
Interface :Serial ATA-600
Capacity :256 GB
NAND Flash Memory Type :3D triple-level cell (TLC)
Data Transfer Rate :600 MBps
Internal Data Rate :560 MBps
Internal Data Rate (Write) :520 MBps
Maximum 4KB Random Read :95000 IOPS
Maximum 4KB Random Write :85000 IOPS
Drive Writes Per Day (DWPD) :1.61
Features :Advanced Garbage Collection, Advanced Global Wear Leveling, Block management, DevSleep mode, DRAM cache, LDPC error correction, Native Command Queuing (NCQ), TRIM support
Compliant Standards :S.M.A.R.T.
Interface Provided
Interfaces :1 x SATA 6 Gb/s – M.2 Card
Bay Required
Compatible Bay :M.2 2280 (double-sided)
Power Consumption
Power Consumption :0.3 Watt (sleep), 2.1 Watt (active)
Miscellaneous
MTBF :2,000,000 Hours
Compliant Standards :BSMI, FCC, RoHS
Dimensions & Weight
Width :3.1 inch
Depth :0.9 inch
Height :0.1 inch
Weight :0.32 ounce
