TS512GMTS952T Technical Specifications

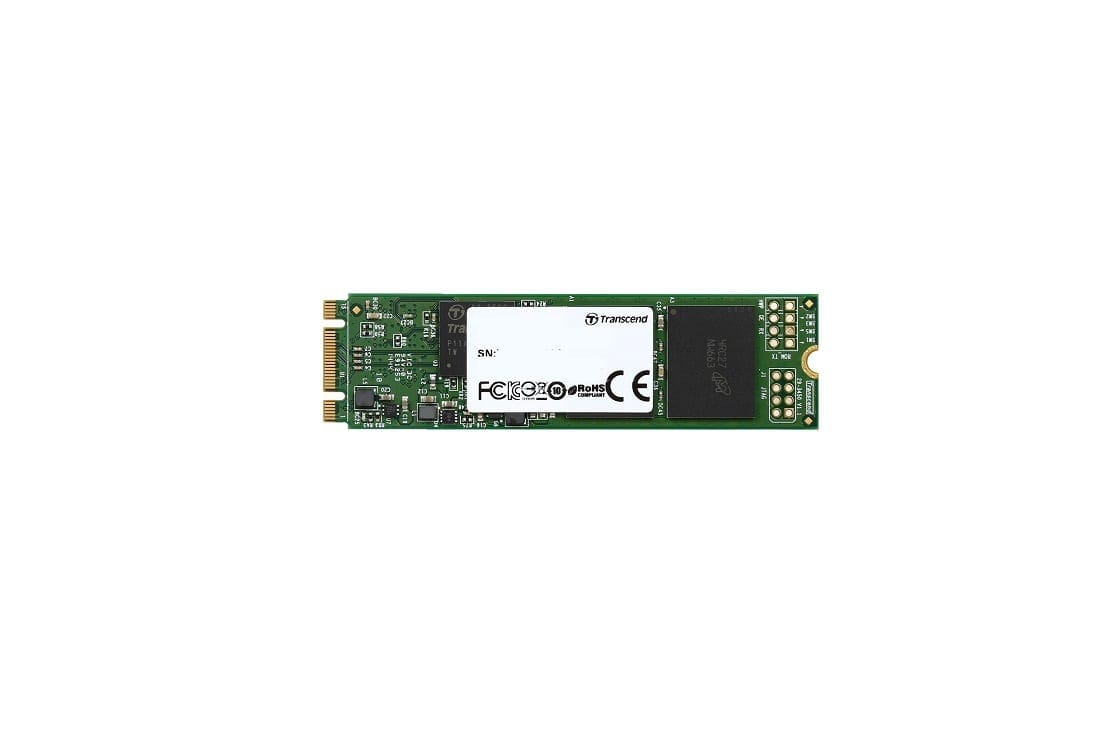

Transcend MTS952T solid state drive 512GB SATA 6Gb/s
Brand :Transcend
Product Line :Transcend
Model :MTS952T
Packaged Quantity :1
Storage
Type :Solid state drive
Hard Drive
Hard Drive Type :Internal hard drive
Form Factor :M.2 2280 (double-sided)
Form Factor (metric) :M.2 2280 (double-sided)
Form Factor (Short) :M.2
Form Factor (Short) (metric) :M.2
Storage Interface :Serial ATA-600
Interface :Serial ATA-600
Capacity :512 GB
NAND Flash Memory Type :3D triple-level cell (TLC)
Data Transfer Rate :600 MBps
Internal Data Rate :560 MBps
Internal Data Rate (Write) :520 MBps
Maximum 4KB Random Read :95000 IOPS
Maximum 4KB Random Write :85000 IOPS
Drive Writes Per Day (DWPD) :1.61
Features :Advanced Garbage Collection, Advanced Global Wear Leveling, Block management, DevSleep mode, DRAM cache, LDPC error correction, Native Command Queuing (NCQ), TRIM support
Compliant Standards :S.M.A.R.T.
Interface Provided
Interfaces :1 x SATA 6 Gb/s – M.2 Card
Bay Required
Compatible Bay :M.2 2280 (double-sided)
Power Consumption
Power Consumption :0.3 Watt (sleep), 2.1 Watt (active)
Miscellaneous
MTBF :2,000,000 Hours
Compliant Standards :BSMI, FCC, RoHS
Dimensions & Weight
Width :3.1 inch
Depth :0.9 inch
Height :0.1 inch
Weight :0.32 ounce
