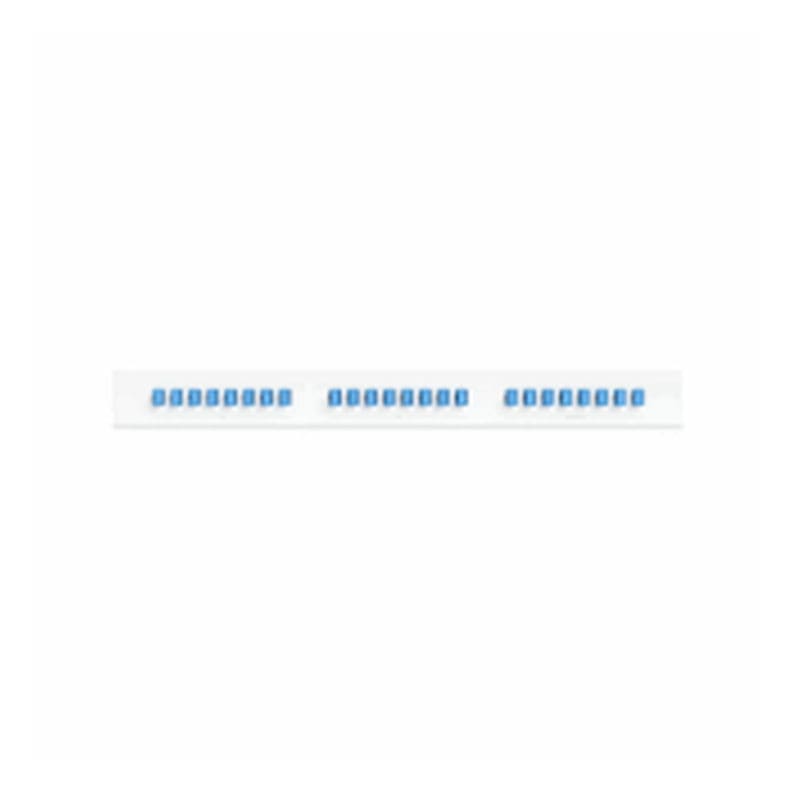

UACC-UF-WDM-XGS UBIQUITI UISP Fiber Coexistence WDM Filter

UACC-UF-WDM-XGS Technical Specification

UBIQUITI UISP Fiber Coexistence WDM Filter

Manufacturer: Ubiquiti
Brand: Ubiquiti
Mechanical
Dimensions: 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7″)
Weight: 1.8 kg (3.97 lb)
Enclosure material: Metal
Connector type: (8) COM (SC/UPC), (8) GPON (SC/UPC), (8) XGS/XG-PON (SC/UPC)
GPON – COM port :
Wavelength range 1290—1330 nm
1480—1500 nm
Max. insertion loss 1 dB
Min. isolation 25 dB
XGS-PON – COM port:
Wavelength range 1260—1280 nm
1575—1580 nm
Max. insertion loss 1 dB
Min. isolation 25 dB
Min. return loss: 50 dB
Max. polarization dependentloss: 0.1 dB
Fiber type: ITU-T G.657.A1 Single Model Fiber
