UCS-CX-B200M3-P2 Technical Specifications

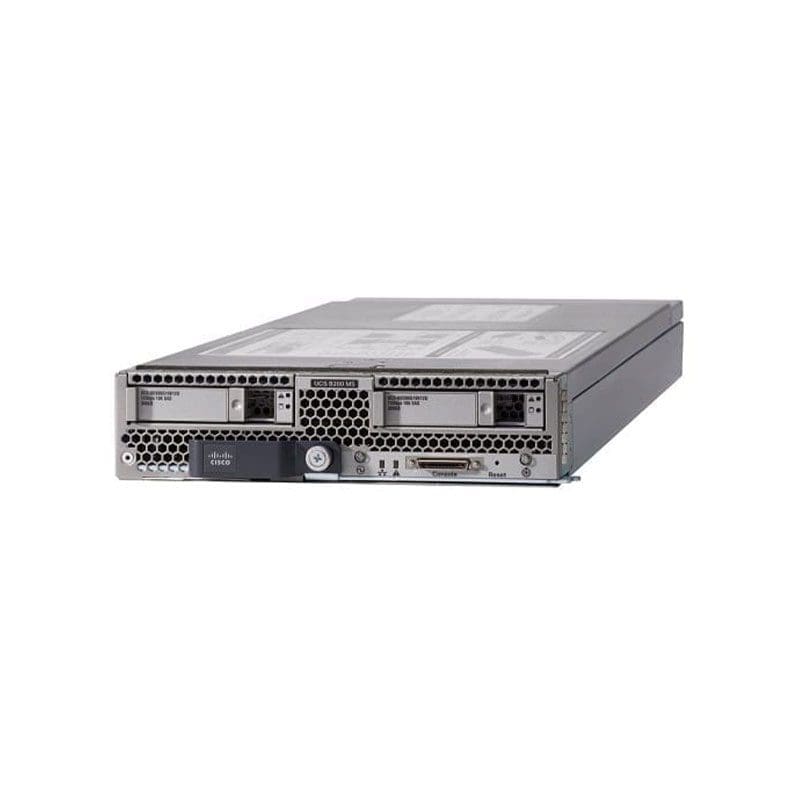

Cisco UCS B200 M3 Blade Server blade
Bay Provided
Form Factor :2.5″ SFF
Free Qty :2
Total Qty :2 Bays
Cache Memory
Installed Size :50 MB
Per Processor Size :25 MB
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty :2 Bays
Manufacturer Form Factor :Blade
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Width :8 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 240-pin
Type :Expansion slot
Type :SDHC Card
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :B200 M3 Blade Server (Not a standalone SKU)
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 in front
Qty :1
Type :KVM
Location :1 internal
Type :USB 2.0
Mainboard
Chipset Type :Intel C600
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Included Accessories :2 x CPU Heatsink
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1240
Ethernet Ports :4 x 10 Gigabit Ethernet
Form Factor :Plug-in module
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
OS Provided
Type :No operating system
Printer
Type :None
Processor
Clock Speed :3 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.6 GHz
Number of Cores :10-core
Processor Number :E5-2690v2
Server Scalability :2-way
Type :Xeon
RAM
Configuration Features :16 x 16 GB
Data Integrity Check :ECC
Empty Slots :8
Features :Dual rank, Registered
Form Factor :DIMM 240-pin
Installed Size :256 GB
Max Supported Size :384 GB
Memory Specification Compliance :PC3-14900
Memory Speed :1866 MHz
Rated Memory Speed :1866 MHz
Slots Qty :24 DDR3 Slots
Technology :DDR3 SDRAM
