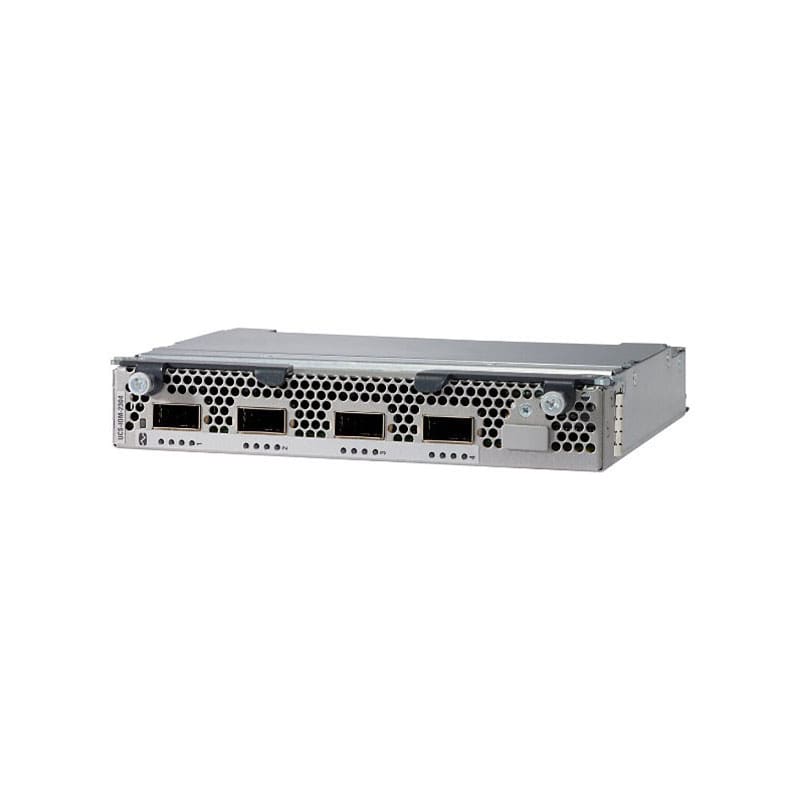

UCS-IOM-2304 Cisco UCS 2304 Fabric Extender Expansion module 40Gb Ethernet / FCoE QSFP+ x 4

UCS-IOM-2304 Technical Specifications

Cisco UCS 2304 Fabric Extender Expansion module 40Gb Ethernet / FCoE QSFP+ x 4

Brand: Cisco
Product Line: Cisco UCS
Model: 2304 Fabric Extender
Manufacturer: Cisco Systems
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Form Factor: Plug-in module
Product Type: Expansion module
Connectivity
Interface Provided: 4 x 40Gb Ethernet / FCoE (uplink) – QSFP+, 8 x 40Gb Ethernet – backplane
Port Quantity: 4
Network & Adapter Ports: 40Gb Ethernet / Fibre Channel over Ethernet (FCoE) QSFP+
Technical Information
Max Operating Temperature: 40 degree Celsius
Min Operating Temperature: 0 degree Celsius
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Forwarding performance: 960 Gbps
Ports (2nd) Quantity: 8
Ports (2nd) Type: 40Gb Ethernet (backplane)
Dimensions & Weight
Height: 19.4 centimetre
Weight: 1.134 kilogram
Width: 3.45 centimetre
Depth: 18.3 centimetre
