UCS-RAID9271-8I technical Specifications

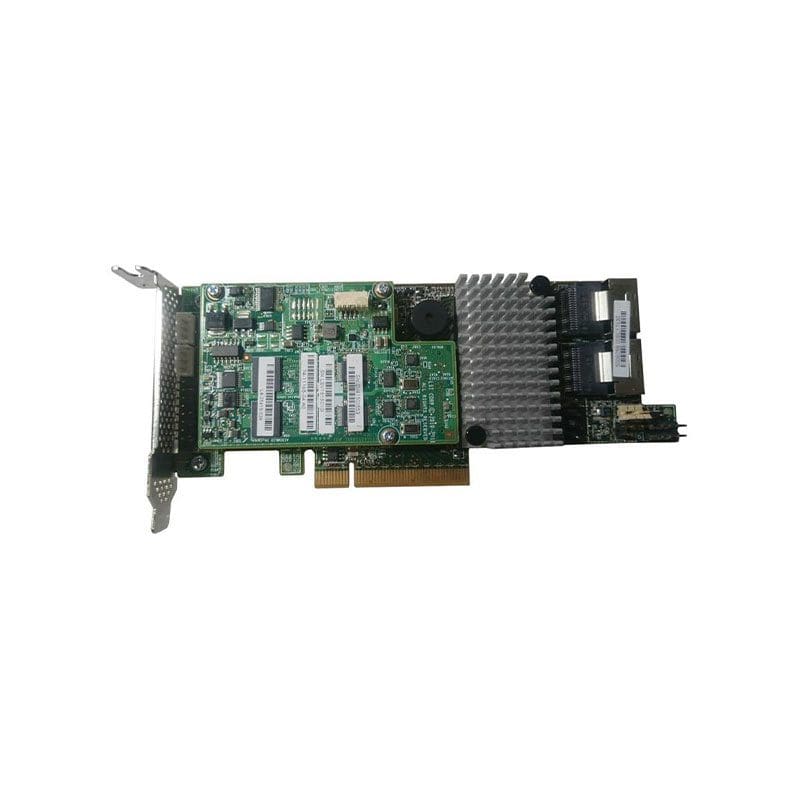

LSI MegaRAID SAS 9271-8i Storage Controller (RAID) SAS PCIe 3.0 x8
Manufacturer
Cisco Unified Computing
Brand
LSI
Product Line
LSI MegaRAID
Model
SAS 9271-8i
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Processor
Type
LSISAS2208
Manufacturer
LSI
Clock Speed
800 megahertz
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x8
Low Profile
Low profile
Data Transfer Rate
6 Gbit/s, 600 Gbit/s
Interface
SAS
Channel Qty
8
Supported Devices
Disk array (RAID), Hard drive
Max Storage Devices Qty
128
Buffer Size
1 GB, 1 GB
Maximum LUNs
64
RAID Level
RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
2 x SAS – 36 pin 4i Mini MultiLane (internal)
Power Device
Type
None
Miscellaneous
MTBF
1,031,514 Hours
Compliant Standards
BSMI, CSA 22.2, C-Tick, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC Class A certified, FCC Class B certified, MIC, RRL, UL 1950, VCCI
Features
DDF compliant Configuration on Disk (COD), Load Balancing, Online RAID Level Migration (RLM)
Dimensions & Weight
Depth
6.6 inch
Height
2.5 inch
Environmental Parameters
Max Operating Temperature
140 degree Fahrenheit
