UCS-SA-C220M3S-102 Cisco Systems Not A Standalon

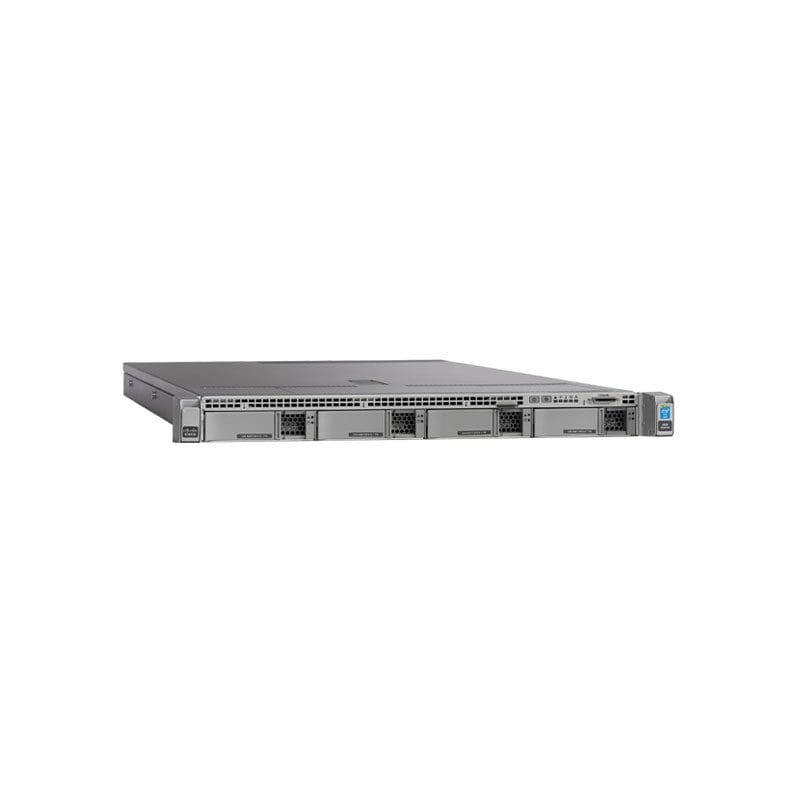

UCS-SA-C220M3S-102 Overview
The Cisco® Unified Computing System™ (Cisco UCS) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access into a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest expansion of the Cisco UCS portfolio includes the new Cisco® UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU) and the Cisco UCS B200 M3 Blade Server. These three new servers increase compute density through more cores and cache balanced with more memory capacity, disk drives and with faster I/O. Together these server improvements and complementary Cisco UCS advancements deliver the best combination of features and cost efficiency required to support IT’s diverse server needs.
$6,315
Buy NowUCS-SA-C220M3S-102 Technical Specifications
Cisco Systems Not A Standalon
General Information
Product Name Not A Standalone SKU C240 M3SFF with 2XE5-2650 V2 128GB 9271CV
Manufacturer Part Number UCS-SA-C220M3S-102
Product Series C220 M3
Product Type Server
Cisco UCS
Controllers
RAID Supported Yes
I/O Expansions
Number of Total Expansion 8 Bays
Number of Internal 2.5″ Bays 8
Memory
Standard Memory 64 GB
Maximum Memory 512 GB
Memory Technology DDR3 SDRAM
Number of Total Memory Slots 16 DDR3 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2650v2
Processor Core Octa-core (8 Core)
Processor Speed 2.60 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 16.9″
Depth 28.5″
Other Information
Product Family C220 M3
Cache 20 MB
Memory Card Reader Yes
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model Intel C600
QuickPath Interconnect 8 GT/s
Hyper-Threading Yes
Number of Total Expansion Slots 2
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 1
VGA Yes
Network (RJ-45) Yes
Remote Management Yes
Total Number of USB Ports 3
Maximum Turbo Speed 3.40 GHz
Memory Card Supported SD
Memory Standard DDR3-1866/PC3-14900
