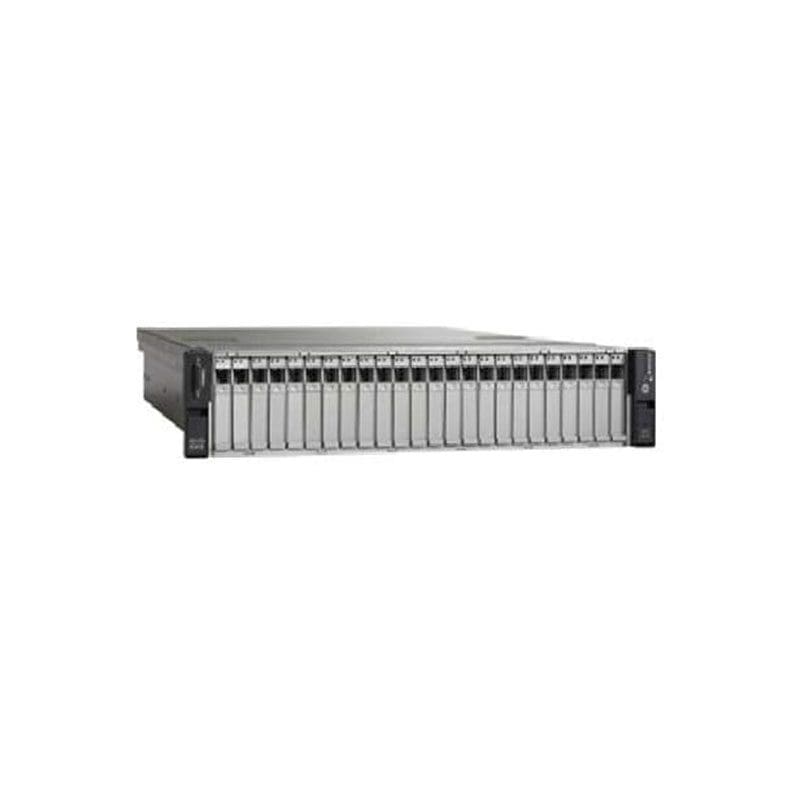

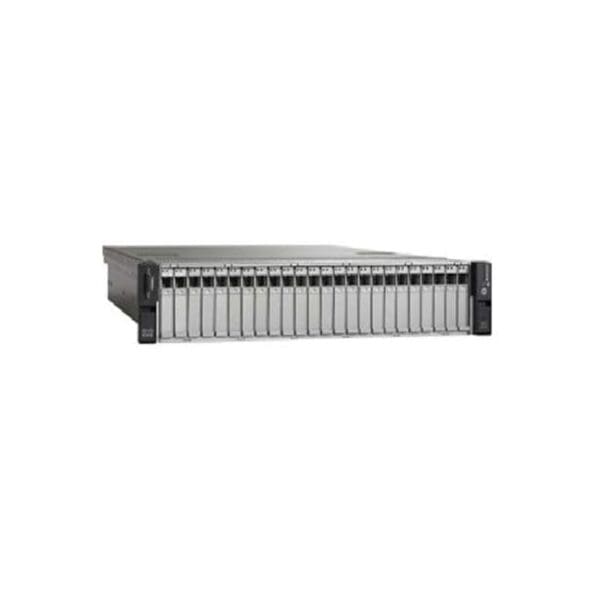

UCS-SA-C240M3S-203 Cisco UCS C240 M3 Rack-Mount

UCS-SA-C240M3S-203 Technical Specifications

Cisco UCS C240 M3 Rack-Mount

Bay Provided
Form Factor :2.5″
Free Qty :19
Total Qty :24
Cache Memory
Installed Size :50 MB
Per Processor Size :25 MB
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24 Bays
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :28 in
Height :3.4 in
Width :17.5 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length, full-height
Size :Half-length, low-profile
Slot Comments :X8 mode
Type :PCIe 3.0 x16
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 240-pin
Hard Drive
Installed Qty :1
Interface Class :Serial Attached SCSI
Type :SSD
Hard Drive (2nd)
Capacity :900 GB
Installed Qty :4
Interface Type :Serial Attached SCSI 2
Removable :Hot-swap
Type :HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C240 M3 High-Density Rack-Mount Server Small Form Factor
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Qty :4
Type :LAN (Gigabit Ethernet)
Type :KVM
Type :Management (NIC)
Type :VGA
Mainboard
Chipset Type :Intel C600
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :2U Rack Mount
Included Accessories :2 x CPU Heatsink, 32 GB SD Memory Card, Rack rail kit
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel I350
Ethernet Ports :4 x Gigabit Ethernet
Remote Management Protocol :CLI, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :1.2 kW
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
