UCS-SP-B200M4-A2T Technical Specifications
Cisco Systems Not Sold Standalone B200M4
General Information
Product Name Not Sold Standalone B200M4 ADV2
Manufacturer Part Number UCS-SP-B200M4-A2T
Product Series B200 M4
Product Type Server
Cisco UCS
Controllers
Controller Type Serial Attached SCSI (SAS)
Serial SATA
RAID Supported Yes
RAID Levels 0, 1
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2680v3
Processor Core Dodeca-core (12 Core)
Processor Speed 2.50 GHz
Physical Characteristics

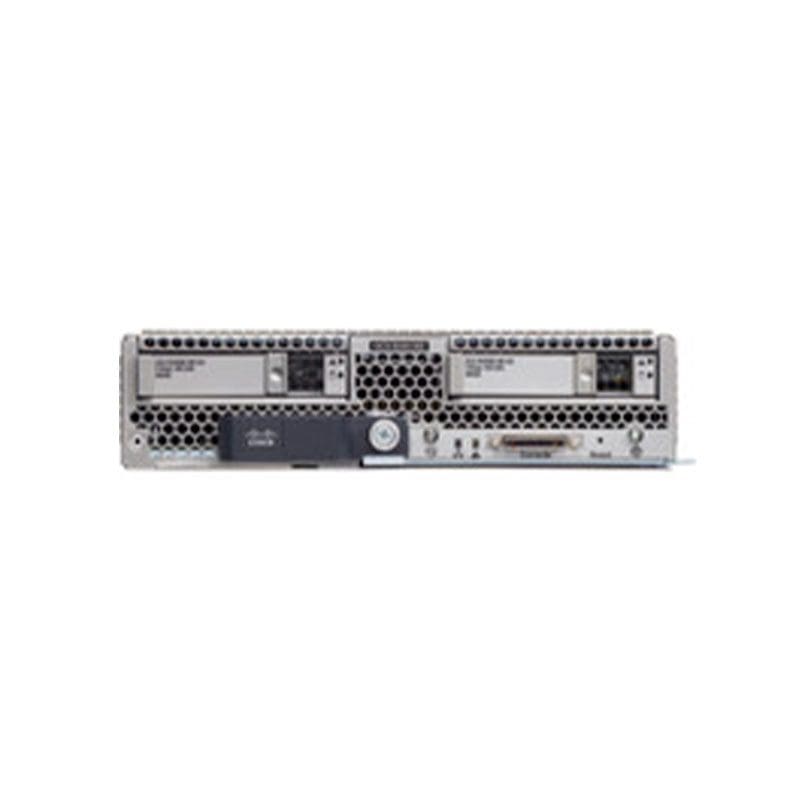

Form Factor Blade Server
Height 2″
Width 8″
Depth 24.4
