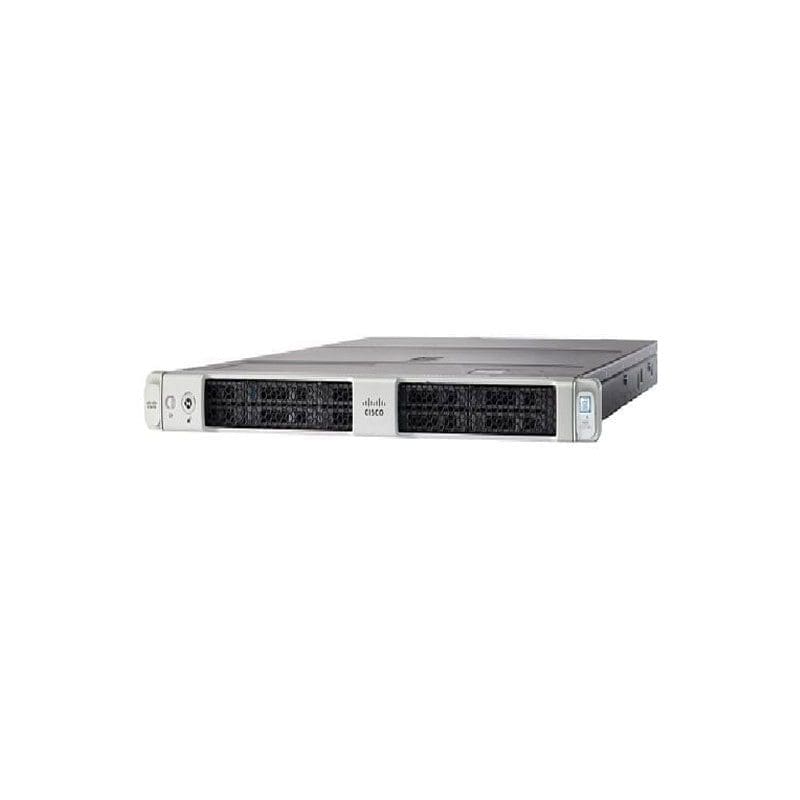

UCS-SP-C220M5-A2 Cisco UCS SmartPlay Select C220 M5 Standard

UCS-SP-C220M5-A2 Technical Specifications

Cisco UCS SmartPlay Select C220 M5 Standard

Bay Provided
Form Factor :2.5″ SFF
Free Qty :10
Total Qty :10 Bays
Cache Memory
Installed Size :38.5 MB
Installed Size :38.5
Per Processor Size :19.25 MB
Per Processor Size :19.25
Type :L3 cache
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Rack-mountable
Front Accessible Bays Qty :10 Bays
Hot-Swap Bays Qty :10
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot swap
Expansion Slots
Size :Half-length, half-height
Slot Comments :X16 mode / NCSI support
Type :PCIe 3.0 x24
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :mLOM
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Manufacturer :Cisco Unified Computing
Model :SmartPlay Select C220 M5 Standard 2
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :DB-15
Location :1 rear
Qty :1
Type :VGA
Connector Type :QSFP
Type :40Gb FCoE
Connector Type :RJ-45
Type :Serial
Location :1 in front
Type :KVM
Location :2 rear
Qty :2
