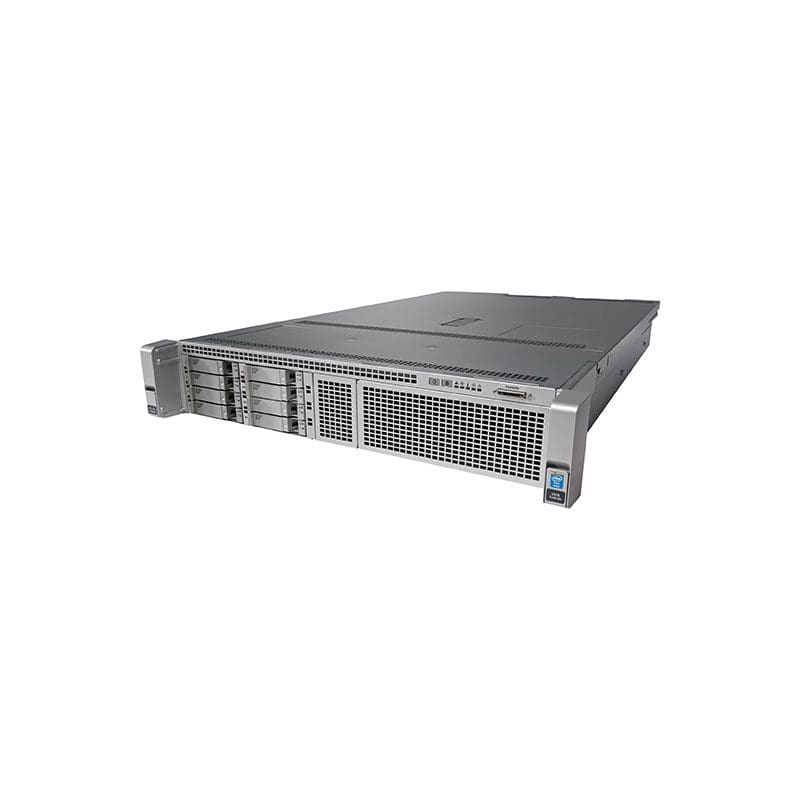

UCS-SP-C240M4-B-F1 Cisco Systems Ucs SP C240M4SX FREQ1

UCS-SP-C240M4-B-F1 Technical Specifications

Cisco Systems Ucs SP C240M4SX FREQ1

General Information
Product Name Ucs SP C240M4SX FREQ1 with 2XE52643 V4 8X32GB VIC1227
Manufacturer Part Number UCS-SP-C240M4-B-F1
Product Series C240 M4
Product Type Server
Cisco UCS
Controllers
Controller Type Serial SATA/600
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2643v4
Processor Core Hexa-core (6 Core)
Processor Speed 3.40 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
