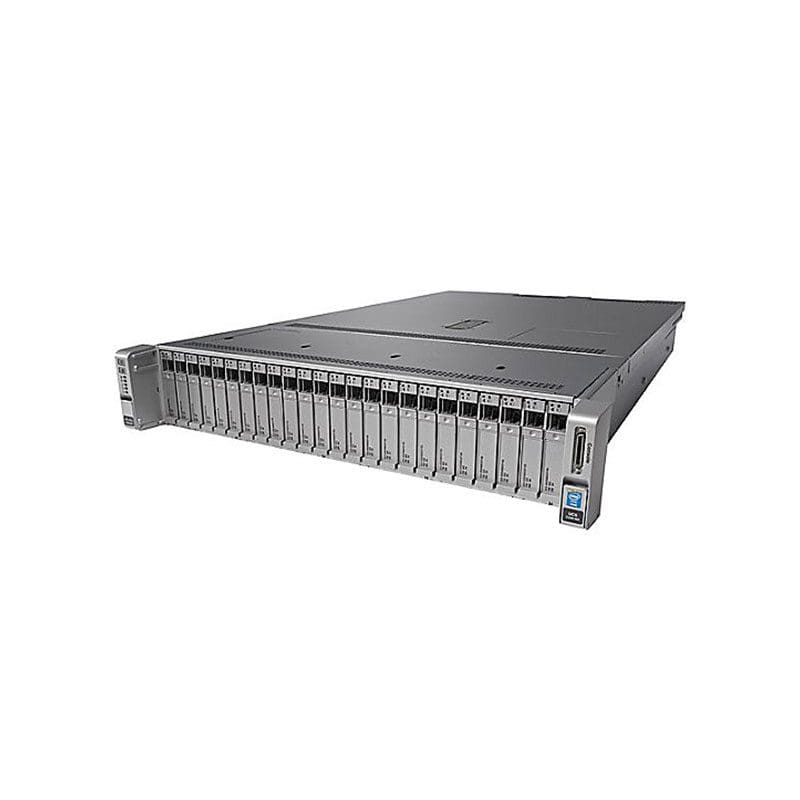

UCS-SP-C240M4L-S1 Cisco Systems C240M4L Standard
UCS-SP-C240M4L-S1 Overview
The UCS C240 M4 LFF server is the newest 2-socket, 2U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration.
$5,999
Buy NowUCS-SP-C240M4L-S1 Technical Specifications
Cisco Systems C240M4L Standard with 2XE52630V3
General Information
Product Name C240M4L Standard with 2XE52630V3 8X16GB VIC1227
Manufacturer Part Number UCS-SP-C240M4L-S1
Product Series C240 M4
Product Type Server
Controllers
Controller Type Serial SATA
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 128 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2630v3
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
