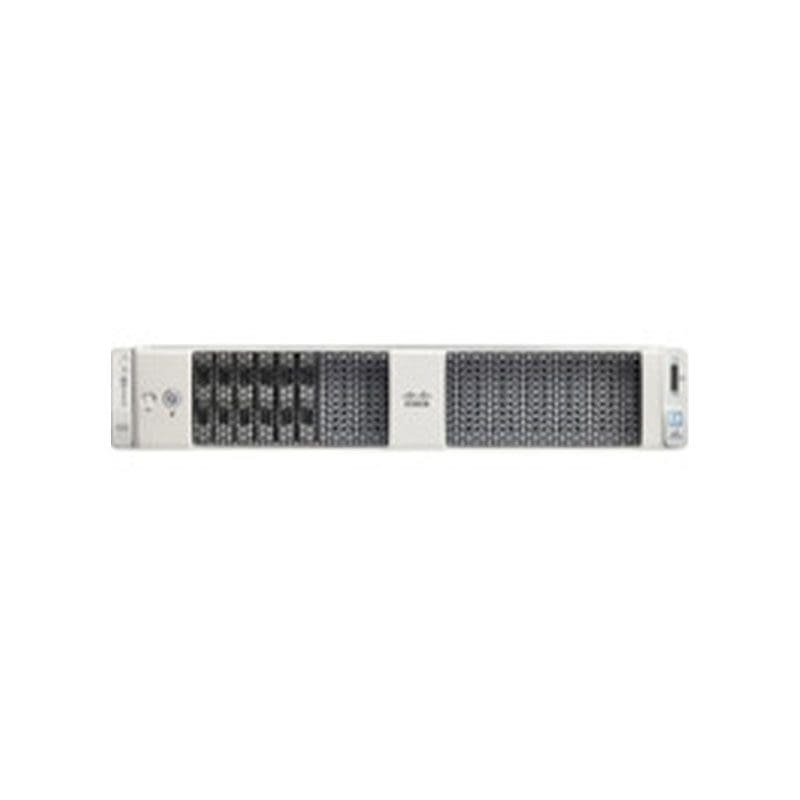

UCS-SP-C240M5-S4 Cisco Systems SP C240 M5SX 2X4114 6X16GB

UCS-SP-C240M5-S4 Overview

The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Processor. With this combination and the new 512GB Intel® OptaneTM DC Persistent Memory (DCPMM – Data Center Persistent Memory Module), up to 9 TB of memory is possible (12x256GB DDR4 DIMMs1 and 12x512GB DCPMMs).


Buy Now
Availability: In Stock

UCS-SP-C240M5-S4 Technical Specifications

Cisco Systems SP C240 M5SX 2X4114 6X16GB

General Information
Product Name SP C240 M5SX 2X4114 6X16GB Memory Single Rank
Manufacturer Part Number UCS-SP-C240M5-S4
Product Series C240 M5
Product Type Server
Controller Type 12Gb/s SAS
Ethernet Technology: 40 Gigabit Ethernet
RAID Supported Yes
RAID Levels 0
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 26 Bays
Number of Internal 2.5″ Bays 26
Hot Swap Bays Yes
Standard Memory 96 GB
Maximum Memory 9 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 6
Intel Optane Memory Ready Yes
Network & Communication
Ethernet Technology 40 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC

Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1600 W
Redundant Power Supply Yes
