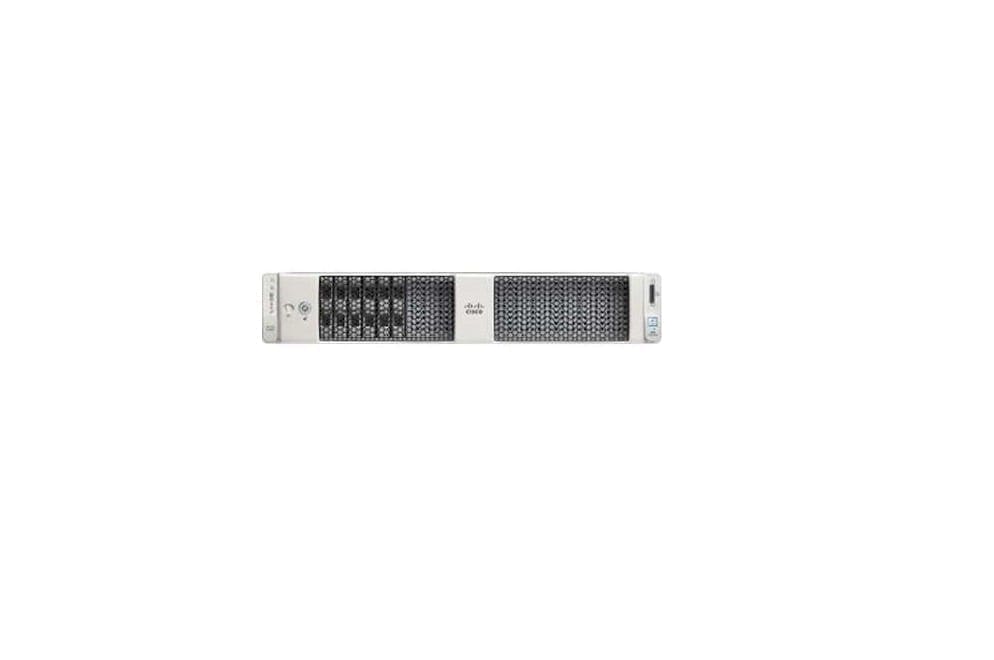

UCS-SPC240M5L-S1 Cisco UCS SmartPlay Select C240 M5L Standard

UCS-SPC240M5L-S1 Technical Specifications

Cisco UCS SmartPlay Select C240 M5L Standard

Bay Provided
Form Factor :2.5″
Free Qty :2
Total Qty :2
Form Factor :3.5″ LFF
Free Qty :12
Total Qty :12
Cache Memory
Installed Size :22 MB
Installed Size :22
Per Processor Size :11 MB
Per Processor Size :11
Type :L3 cache
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Rack-mountable
Front Accessible Bays Qty :12 Bays
Hot-Swap Bays Qty :14
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :8 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Form Factor (metric) :8.9 cm LFF
Type :Hot-swap
Expansion Slots
Slot Comments :Riser card only
Type :Expansion slot
Type :M.2 Card
Type :mLOM
Type :SD card (internal)
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :SmartPlay Select C240 M5L Standard 1
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :DB-15
Type :VGA
Connector Type :QSFP
Type :40Gb FCoE
Connector Type :RJ-45
Qty :2
Type :LAN (10 Gigabit Ethernet)
Location :1 internal
Qty :1
Type :KVM
Type :Management
Type :Serial
Type :USB 3.0
Miscellaneous
Color Category :Gray
Compliant Standards :ACPI 4.0, AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, Directive 2014/30/EU, Directive 2014/35/EU, EN 300386, EN 55032 Class A, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN32 Class A, KN35, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :2U Rack Mount
Included Accessories :12 x LFF drive blanking panel, 2 x CPU Heatsink, 2 x PCIe riser blanking panel, Cisco Ball Bearing Rail Kit
Networking
Data Link Protocol :10 Gigabit Ethernet, 40 Gigabit Ethernet, 40Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1387, Intel X550
Ethernet Ports :2 x 10 Gigabit Ethernet, 2 x 40 Gigabit FCoE
Features :Wake on LAN (WoL)
Remote Management Protocol :CLI, IPMI 2.0, SMTP, SNMP 2, SNMP 3
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50 – 60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :1600 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply – hot plug
Printer
Type :None
Processor
Clock Speed :2.1 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Number of Cores :8-core
Processor Number :4110
Server Scalability :2-way
Type :Xeon Silver
Upgradability :Upgradable
RAM
Configuration Features :6 x 16 GB
Data Integrity Check :ECC
Empty Slots :18
Features :Dual rank, Registered
Form Factor :DIMM 288-pin
Installed Size :96 GB
Installed Size :96
Memory Specification Compliance :PC4-21300
Memory Speed :2666 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
