UCS-SPR-C220M4-V1 Technical Specifications

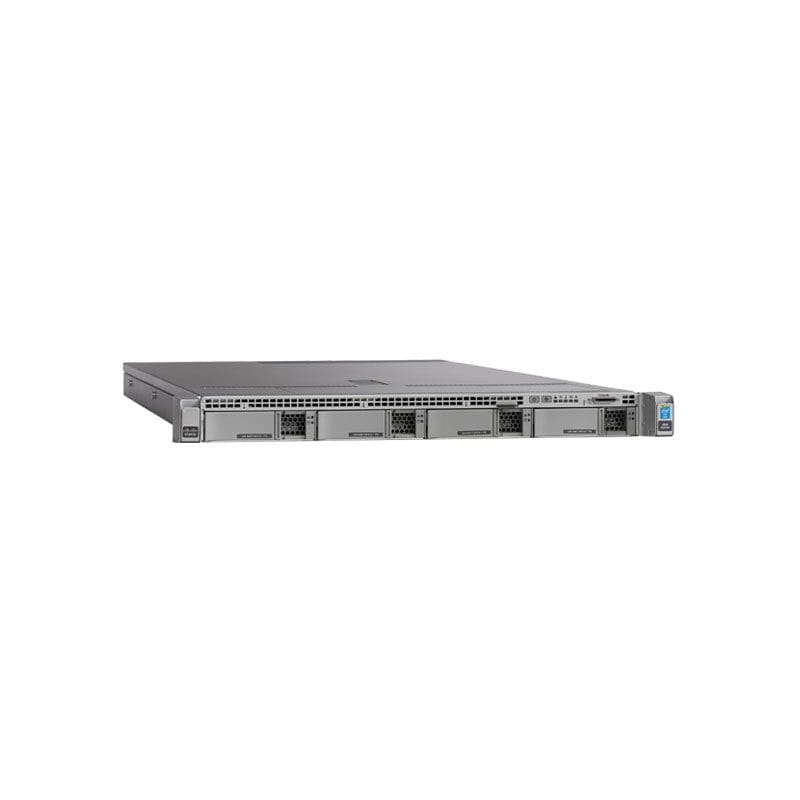

Cisco Systems Ucs C220M4S with 2XE52640V3
General Information
Product Name Cisco Ucs C220M4S with 2XE52640V3 2X8GB 2X770W
Manufacturer Part Number UCS-SPR-C220M4-V1
Product Series C220 M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
Memory
Standard Memory 16 GB
Memory Technology DDR4 SDRAM
Number of Total Memory 24 DDR4 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2640v3
Processor Core Octa-core (8 Core)
Processor Speed 2.60 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U
Other Information
Product Family C220 M4
Cache 20 MB
Memory Card Reader Yes
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C610
QuickPath Interconnect 8 GT/s
Hyper-Threading Yes
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 2
VGA Yes
Network (RJ-45) Yes
Remote Management Yes
Bays
4 Bays
