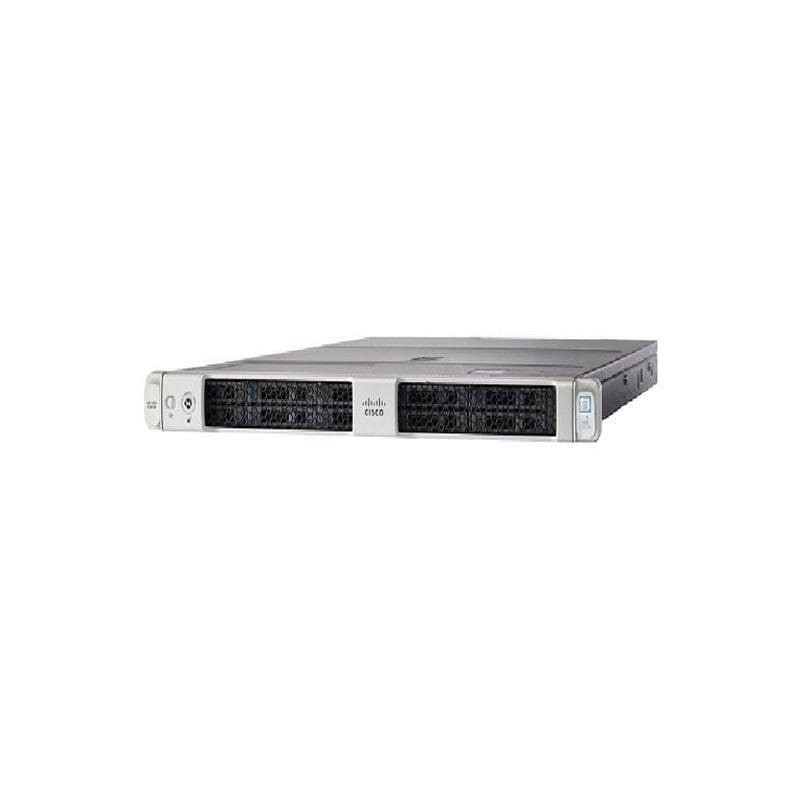

UCS-SPR-C220M5-B3 Cisco Systems SP C220 M5SX 1X3106 1X16GB
UCS-SPR-C220M5-B3 Overview
The UCS C220 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
$2,914
UCS-SPR-C220M5-B3 Technical Specifications
Cisco Systems SP C220 M5SX 1X3106 1X16GB
General Information
Product Name SP C220 M5SX 1X3106 1X16GB Memory Single Rank
Manufacturer Part Number UCS-SPR-C220M5-B3
Product Series C220 M5
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Hot Swappable Bays Yes
Memory
Standard Memory 16 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 770 W
