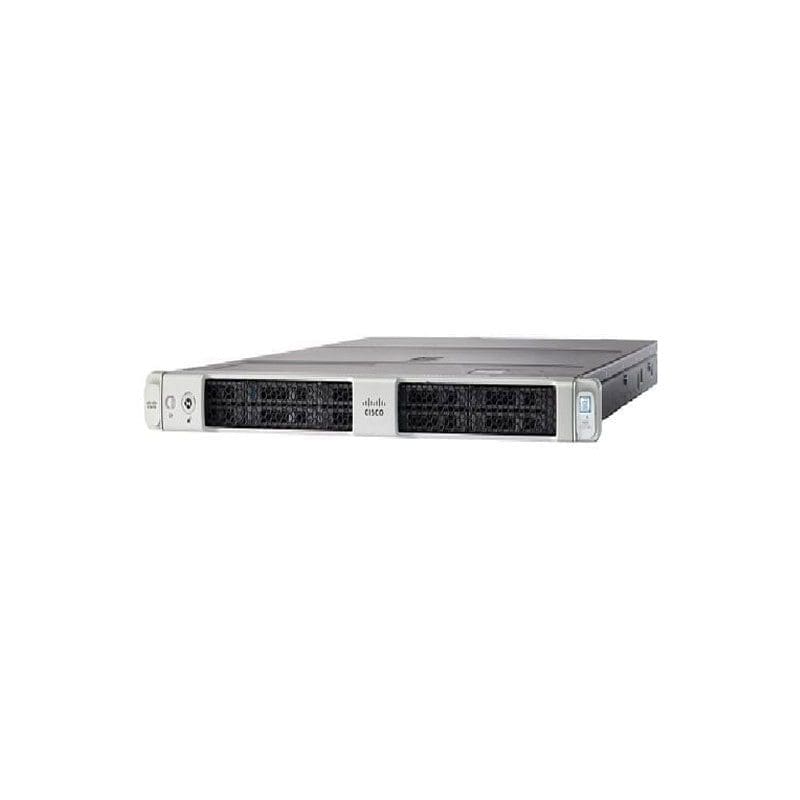

UCS-SPR-C220M5-S4 Technical Specifications
Cisco Systems SP C220 M5SX 2X4110 2X16GB
General Information
Product Name SP C220 M5SX 2X4110 2X16GB Memory Single Rank
Manufacturer Part Number UCS-SPR-C220M5-S4
Product Series C220 M5
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 10 Bays
Number of Internal 2.5″ Bays 10
Hot Swap Bays Yes
Memory
Standard Memory 32 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 2
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Redundant Power Supply Yes
Storage
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4110
Processor Core Octa-core (8 Core)
Processor Speed 2.10 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
