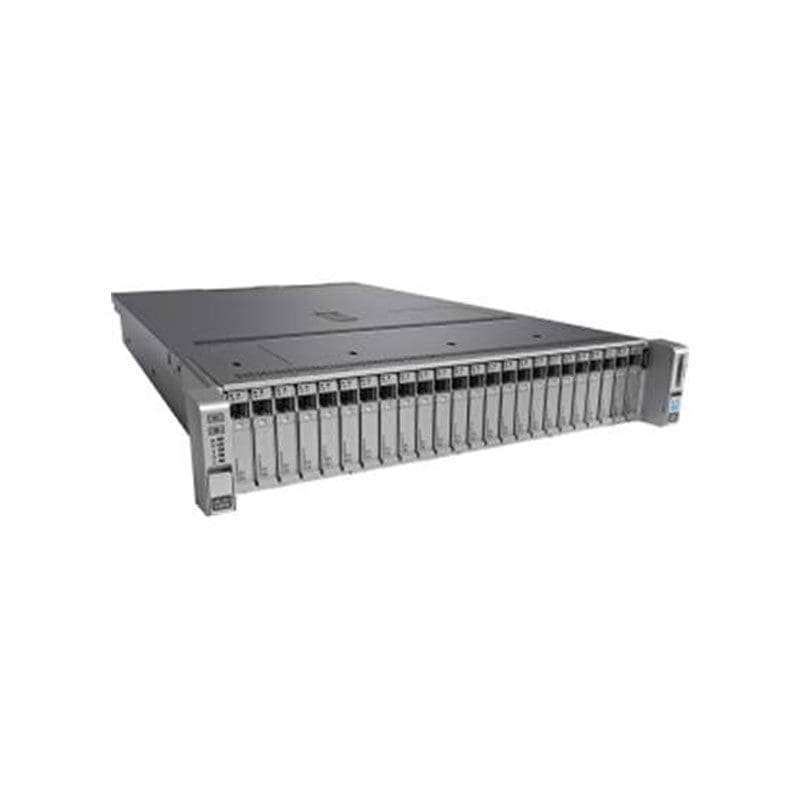

UCS-SPR-C240M4-BC1 Cisco Systems Ucs C240M4S with 2XE52660

UCS-SPR-C240M4-BC1 Technical Specifications

Cisco Systems Ucs C240M4S with 2XE52660

General Information
Product Name Ucs C240M4S with 2XE52660 V4 2X32GB Mraid 2X1200W 32G SD Rails
Manufacturer Part Number UCS-SPR-C240M4-BC1
Product Series C240 M4
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 64 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1200 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2660 v4
Processor Core Tetradeca-core (14 Core)
Processor Speed 2 GHz
