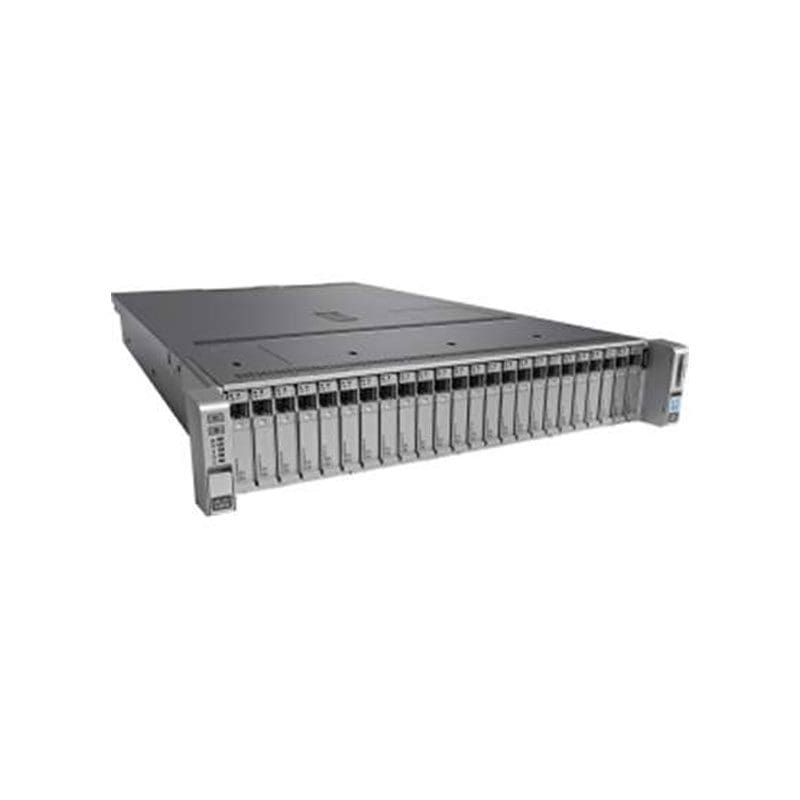

UCS-SPV-C240-V Cisco Systems Ucs C240 M3 SFF-16DR
UCS-SPV-C240-V Overview
The form-factor- agnostic Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest expansion of the Cisco UCS portfolio includes the new Cisco UCS C240 M3 Rack Server (two rack units [2RU]) and Cisco UCS C220 M3 Rack Server (1RU) and the Cisco UCS B200 M3 Blade Server. These three new servers increase compute density through more cores and cache balanced with more memory capacity and disk drives and faster I/O. Together these server improvements and complementary Cisco UCS advancements deliver the combination of features and cost efficiency required to support IT’s diverse server needs.
$3,585
Buy NowUCS-SPV-C240-V Technical Specifications
Cisco Systems Ucs C240 M3 SFF-16DR
General Information
Product Name Cisco Ucs C240 M3 SFF-16DR 2XE5-2640 2X8GB
Manufacturer Part Number UCS-SPV-C240-V
Product Series C240 M3
Product Type Server
Controllers
Controller Type Serial SATA/300
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
I/O Expansions
Number of Total Expansion 8 Bays
Number of Internal 2.5″ Bays 8
Memory
Standard Memory 16 GB
Maximum Memory 384 GB
Memory Technology DDR3 SDRAM
Number of Total Memory Slots 24 DDR3 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 110 V AC
220 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 650 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2640
Processor Core Hexa-core (6 Core)
Processor Speed 2.50 GHz
Software
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 17.5″
Depth 28″
