UCSB-EX-M4-1A-CH Technical Specifications

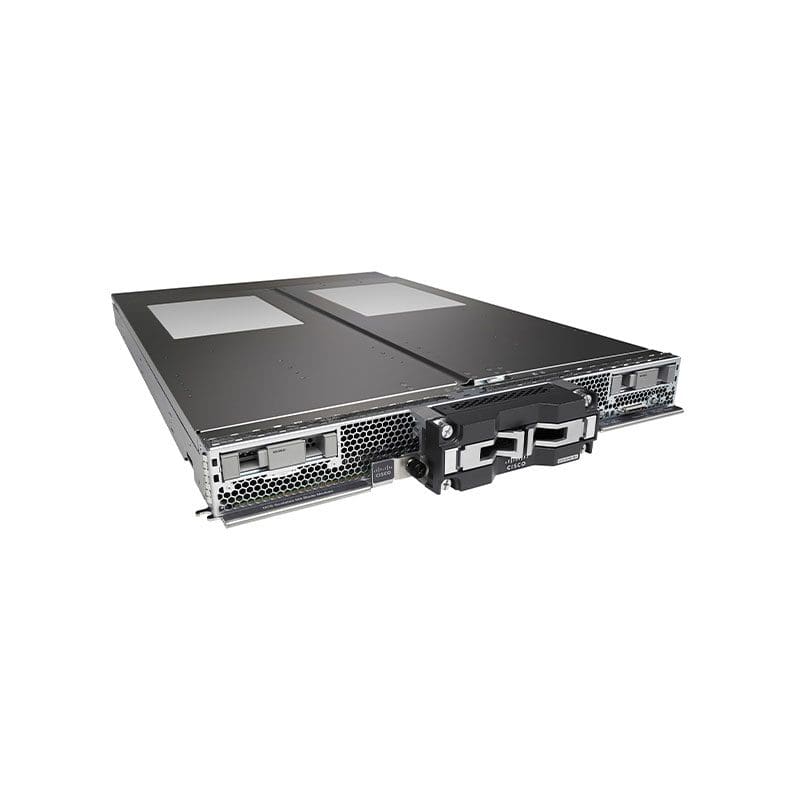

Cisco UCS Scalable M4 Blade Module – blade Server
Bay Provided
Form Factor :2.5″
Free Qty :2
Total Qty :2 Bays
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty :2
Manufacturer Form Factor :Blade
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :25.5 in
Height :1.9 in
Width :17.2 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Type :CPU
Type :Expansion slot
Type :Memory
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :Scalable M4 Blade Module
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 internal
Type :USB 2.0
Qty :1
Type :KVM
Mainboard
Chipset Type :Intel C602J
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, CISPR 22 Class A, CISPR 24, Directive 2004/108/EC, EN 300 386, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Networking
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None
Processor
Max Supported Qty :2
Server Scalability :2-way
Type :No CPU
Upgradability :Upgradable
RAM
Installed Size :0 GB
Max Supported Size :3 TB
Technology :DDR3 SDRAM
