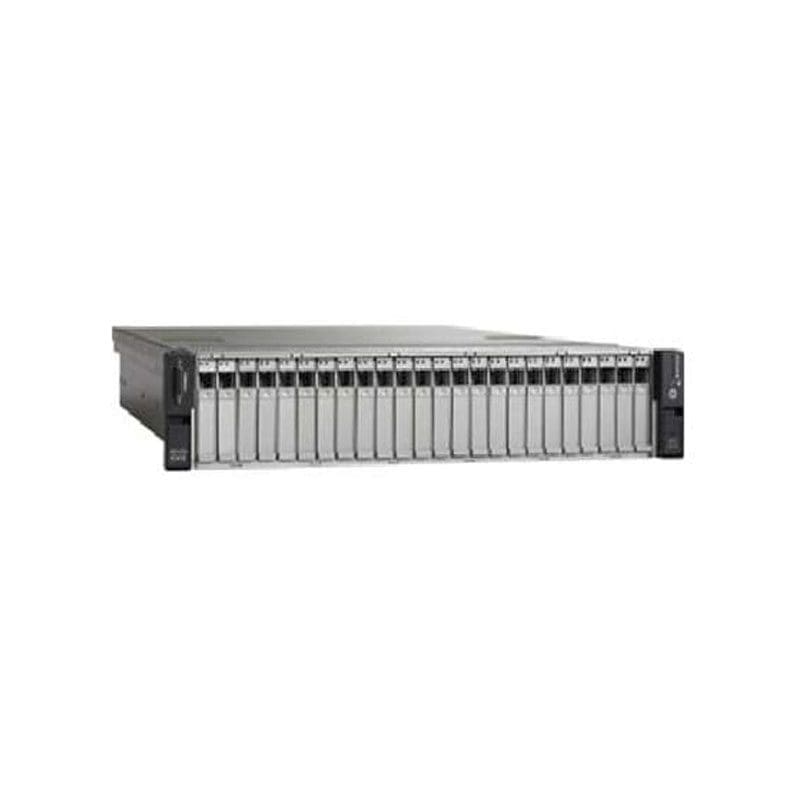

UCSC-C24-M3S Cisco UCS C24 M3 High-Density Rack-Mount

UCSC-C24-M3S Overview

The Cisco UCS C24 M3 Rack Server combines economics and a density-optimized feature set from entry level enterprise to SMB with applications such as scale out, virtualization, IT and web infrastructure, VPN servers, file/print servers, and appliances.

$1,069

Buy Now
Availability: In Stock
SKU:UCSC-C24-M3S
Brand:

UCSC-C24-M3S Technical Specifications

Cisco UCS C24 M3 High-Density Rack-Mount

Bay Provided
Form Factor :2.5″
Free Qty :24
Total Qty :24 Bays
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :26 in
Height :3.4 in
Weight :34.61 lbs
Width :16.9 in
Display
Type :None.
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length
Type :PCIe 3.0 x16
Size :Half-length, full-height
Type :CPU
Type :Memory
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C24 M3 High-Density Rack-Mount Server Small Form Factor
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :2 front, 4 rear
Qty :6
Type :USB 2.0
Qty :1
Type :Serial
Qty :2
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Type :VGA
Mainboard
Chipset Type :Intel C600
Processor Socket :LGA1356 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :2U Rack Mount
Included Accessories :Rack rail kit
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel I350
Ethernet Ports :2 x Gigabit Ethernet
Form Factor :Integrated
Remote Management Protocol :CLI, IPMI 2.0
Type :Network adapter
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :0
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Redundancy :Optional
Type :Power supply
Printer
Type :None
Processor
Max Supported Qty :2
Server Scalability :2-way
Type :No CPU
Upgradability :Upgradable
RAM
Data Integrity Check :Advanced ECC
Features :Low-voltage, Memory Mirroring, Registered
Form Factor :DIMM 240-pin
Installed Size :0 GB
Installed Size :0
Technology :DDR3 SDRAM
