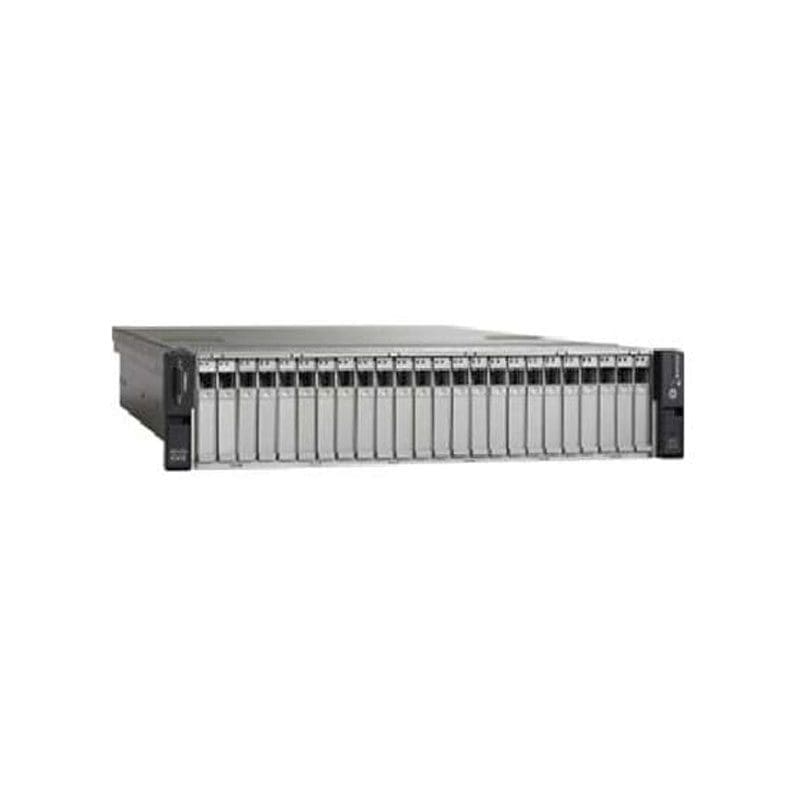

UCSC-C240-M3L Cisco UCS C240 M3 High-Density Rack Server

UCSC-C240-M3L Technical Specifications

Cisco UCS C240 M3 High-Density Rack Server

Bay Provided
Form Factor :3.5″
Free Qty :12
Total Qty :12
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :12
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.3 in
Height :3.4 in
Width :17.5 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :8.9 cm
Type :Hot-swap
Expansion Slots
Size :Half-length, full-height
Slot Comments :X8 mode
Type :PCIe 3.0 x16
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 240-pin
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C240 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model)
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Interface :Ethernet 10Base-T/100Base-TX/1000Base-T
Type :Management
Type :Management (NIC)
Location :1 in front
Type :KVM
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Qty :4
Type :LAN (Gigabit Ethernet)
Type :VGA
Mainboard
Chipset Type :Intel C600
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :2
Included Accessories :Rack rail kit
Modem
Type :None
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel I350
Ethernet Ports :4 x Gigabit Ethernet
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, IPMI 2.0
Type :Network adapter
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :0
Max Supported Qty :2
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply
Printer
Type :None
Processor
Max Supported Qty :2
Server Scalability :2-way
Type :No CPU
Upgradability :Upgradable
RAM
Data Integrity Check :Advanced ECC
Empty Slots :24
Features :Load-Reduced DIMM (LRDIMM), Low-voltage, Memory Mirroring, Registered, Unbuffered
Form Factor :DIMM 240-pin
Installed Size :0 GB
Installed Size :0
Max Supported Size :768 GB
Max Supported Size :768
Slots Qty :24
Technology :DDR3 SDRAM
