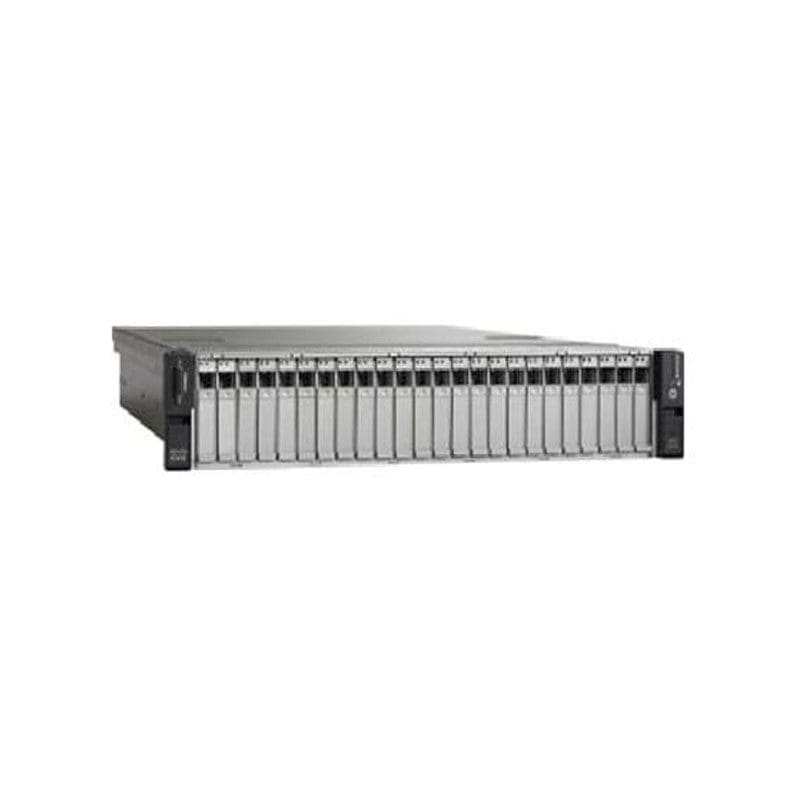

UCSC-C420-M3 Cisco UCS C420 M3 High-Performance Rack Server

UCSC-C420-M3 Technical Specifications

Cisco UCS C420 M3 High-Performance Rack Server

Bay Provided
Form Factor :2.5″ SFF
Free Qty :16
Total Qty :16 Bays
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :16
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :31.5 in
Height :3.5 in
Width :18.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :32 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length
Slot Comments :X8 mode
Type :PCIe 3.0 x8
Size :Half-length, full-height
Type :PCIe 3.0 x16
Type :CPU
Type :DIMM 240-pin
Type :PCIe 2.0 x16
Hard Drive
Type :No HDD
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C420 M3 High-Performance Rack Server
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :Serial
Qty :3
Type :USB 2.0
Qty :4
Type :LAN (Gigabit Ethernet)
Type :KVM
Type :Management (NIC)
Type :VGA
Mainboard
Processor Socket :LGA2011 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EN 300 386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55022 Class B, FCC CFR47 Part 15, GB 4943-2001 PSB, ICES-003 Class A, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI Class A ITE
Height (Rack Units) :2U Rack mount
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :4 x Gigabit Ethernet
Remote Management Controller :Cisco Integrated Management Controller
Remote Management Protocol :CLI, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :0
Max Supported Qty :2
Power Redundancy :Optional
Type :Power supply – hot-plug
Printer
Type :None
Processor
Max Supported Qty :4
Type :No CPU
RAM
Data Integrity Check :ECC
Empty Slots :48
Features :Four DDR channels, Load-Reduced DIMM (LRDIMM), Registered
Form Factor :DIMM 240-pin
Installed Size :0 GB
Installed Size :0
Max Supported Size :1.5 TB
Max Supported Size :1.5
Slots Qty :48 DDR3 Slots
Technology :DDR3 SDRAM
