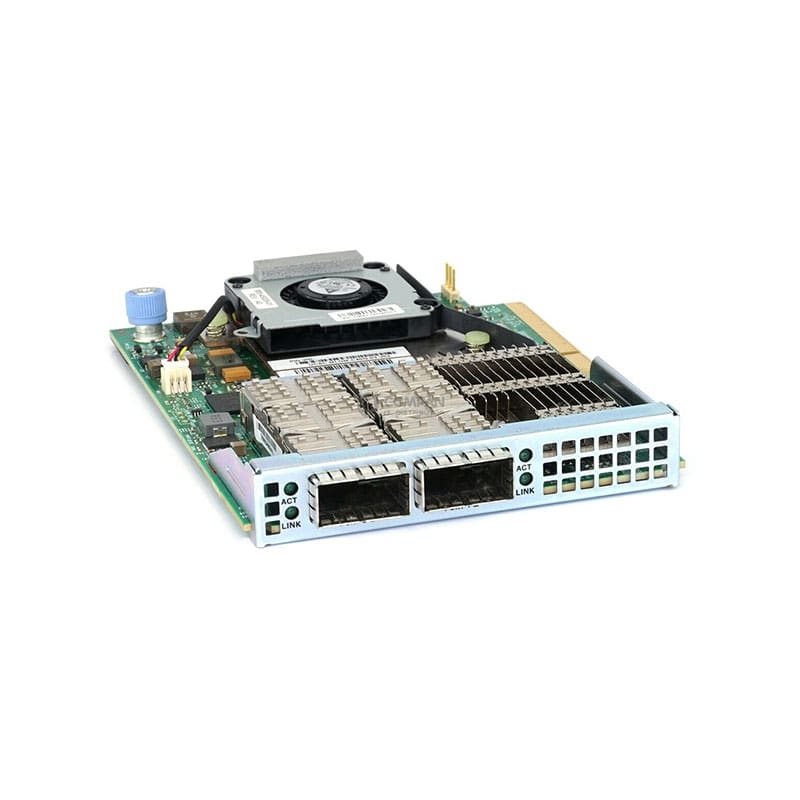

UCSC-MLOM-C40Q-03 Cisco UCS Virtual Interface Card 1387 Network Adapter PCIe 3.0 x8 40Gb Ethernet / FCoE QSFP x 2
UCSC-MLOM-C40Q-03 Overview
The Cisco UCS Virtual Interface Card (VIC) 1387 is a Cisco innovation. It provides a policy-based, stateless, agile server infrastructure for your data center. This dual-port Enhanced Quad Small Form-Factor Pluggable (QSFP) half-height PCI Express (PCIe) modular LAN-on-motherboard (mLOM) adapter is designed exclusively for Cisco UCS C-Series and C3160 Rack Servers. The card supports 40 Gigabit Ethernet and Fiber Channel over Ethernet (FCoE). It incorporates Cisco’s next-generation converged network adapter (CNA) technology and offers a comprehensive feature set, providing investment protection for future feature software releases. The card can present more than 256 PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs).
$1,022
UCSC-MLOM-C40Q-03 Technical Specifications
Cisco UCS Virtual Interface Card 1387 Network Adapter PCIe 3.0 x8 40Gb Ethernet / FCoE QSFP x 2
Brand: Cisco
Manufacture Part Number: UCSC-MLOM-C40Q-03
Product Line: Cisco UCS
Model: Virtual Interface Card 1387
Manufacturer: Cisco Systems
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Data Transfer Rate: 40 GBps
Fibre Channel: FCP, SCSI-FCP
Form Factor: Plug-in module
Host Interface: PCI Express 3.0 x8
Network Standard: iSCSI
PCI Specification Revision: PCIe 3.0
Product Type: Network adapter
Connectivity
Interface Provided: 2 x 40Gb Ethernet / FCoE – QSFP
Port Quantity: 2
Network & Adapter Ports: 40Gb Ethernet / Fibre Channel over Ethernet (FCoE) QSFP
Product Information
Capacity: Jumbo frame size: up to 9 KB, Virtual interfaces (VLANs): 256
Dimensions & Weight
Height: 9.9 centimetre
Width: 1.52 centimetre
Depth: 12.45 centimetre
