VCNVS510DP-PB Technical Specifications

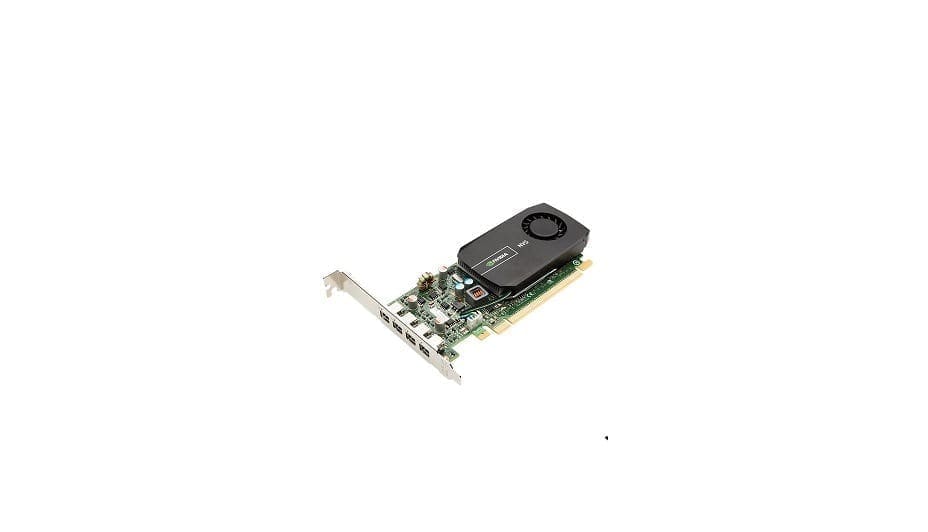

PNY NVS 510 2GB DDR2 128-Bit 4x Mini-DisplayPort PCI-Express 3.0 x16 Port Low Profile Video Graphics Card
General Information
Manufacturer Part Number VCNVS510DP-PB
Brand Name PNY
Product Type Graphic Card
Technical Information
API Supported OpenGL 4.3
DirectX 11.0
DirectCompute
OpenCL
Number of Monitors Supported 4
Processor & Chipset
Chipset Manufacturer NVIDIA
Chipset Line Quadro
Chipset Series NVS
Chipset Model NVS 510
Memory
Standard Memory 2 GB
Memory Technology DDR3 SDRAM
Bus Width 128 bit
Interfaces/Ports
Mini DisplayPort Yes
Number of Mini DisplayPort Outputs 4
Physical Characteristics
Slot Space Required Single
Form Factor Plug-in Card
Card Height Low-profile
Cooler Type Fan Cooler
Height 2.7″
Length 6.3″
Miscellaneous
Platform Supported PC
Energy Star Yes
Environmentally Friendly Yes
