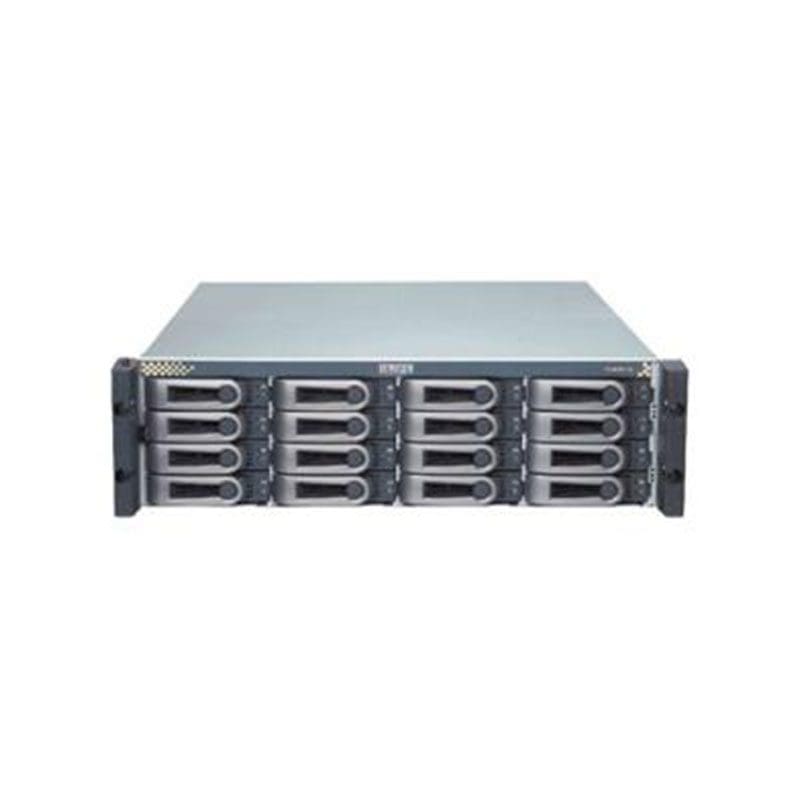

VTE610FS Promise VTrak Hard Drive Array (SAS) Controller RAID

VTE610FS Technical Specifications

Promise VTrak E-Class Hard Drive Array Serial ATA/300, Serial Attached SCSI (SAS) Controller RAID Supported 16 x Total Bays Fibre Channel 3U Rack-mountable

Manufacturer Part Number VTE610FS
Brand Name Promise
Product Type Hard Drive Array
I/O Expansions
Number of Total Expansion Bays 16
Number of 3.5″ Bays 16
Controllers
Controller Type Serial ATA/300
Serial Attached SCSI (SAS)
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60, 1E
1
1E
5
6
1+0
50
60
Interfaces/Ports
Fibre Channel Yes
Physical Characteristics
Height 5.2″
Width 17.6″
Depth 22″
Form Factor Rack-mountable
Rack Height 3U
Weight (Approximate) 22 lb
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
