WDS500G3B0B Technical Specifications

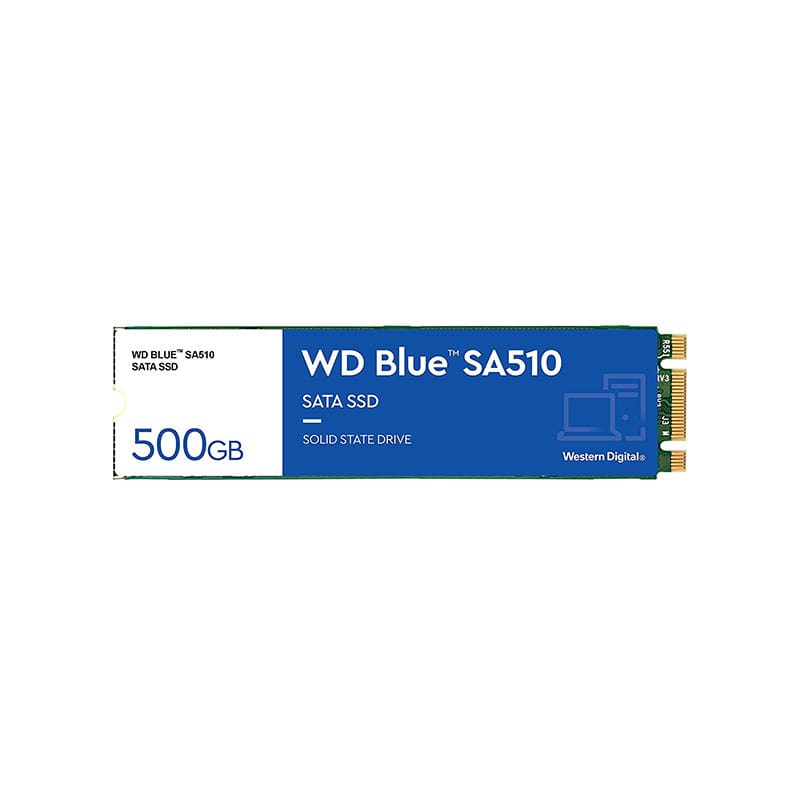

Western Digital SSD 500GB M.2 2280 SATA Iii Blue Sa510 Ret
Brand WD
Product Line WD Blue SA510
Model WDS500G3B0B
Manufacturer Western Digital
Storage
Data Transfer Rate (Hard Drive) 600 MBps
Endurance Type 200 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 500 GB
Hard Drive Type
Internal hard drive
HD Interface
Serial ATA-600
Max Internal Data Transfer Rate 560 MBps
Max Write Transfer Rate 510 MBps
Storage Interface
Serial ATA-600
4KB Random Read
90000 IOPS
4KB Random Write
82000 IOPS
Connectivity
Interface Provided
1 x SATA 6 Gb/s
Power
Power Consumption
12 mW (DevSleep), 1800 mW (read), 2000 mW (write), 36 mW (sleep), 50 mW (active)
Software
Software Type
Acronis True Image, Dropbox Professional (free for 3 months)
Technical Information
Compatible Bay
M.2 2280
Hard Drive Form Factor
M.2 2280
Hard Drive Form Factor (metric)
M.2 2280
Max Operating Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
1,750,000 Hours
Shock Acceleration (Operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Vibration Acceleration (Non-operating)
4.9 gRMS
Vibration Acceleration (Operating)
5 gRMS
Vibration Frequency Range (Non-operating)
7-800 Hz
Vibration Frequency Range (Operating)
10-2000 Hz
Product Information
Packaged Quantity
1
Product Type
Solid state drive
Dimensions & Weight
Height 0.1 inch
Weight 0.17 ounce
Width 0.9 inch
Depth 3.1 inch
