WDS500G3X0E Technical Specifications

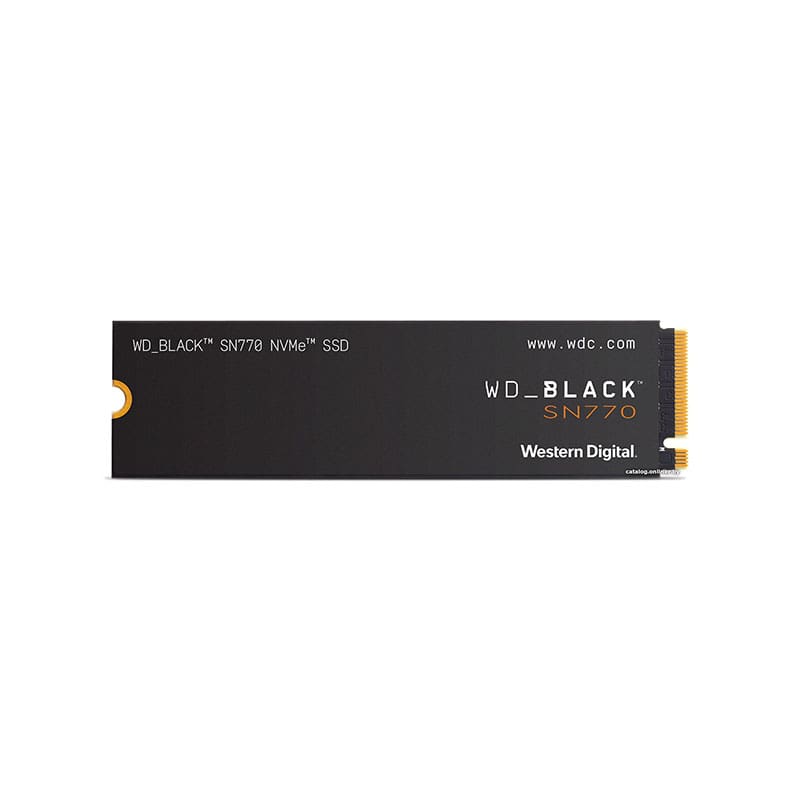

WD_BLACK SN770 – SSD – 500 GB – PCIe 4.0 x4 (NVMe)
Brand WD
Product Line WD_BLACK SN770
Model WDS500G3X0E
Manufacturer Western Digital
Storage
Endurance Type 300 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 500 GB
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 4.0 x4 (NVMe)
Max 4KB Random Read 460000 IOPS
Max Internal Data Transfer Rate 5000 MBps
Max Write Transfer Rate 4000 MBps
Maximum 4KB Random Write 800000 IOPS
Storage Interface
PCI Express 4.0 x4 (NVMe)
Connectivity
Interface Provided
1 x PCI Express 4.0 x4 (NVMe)
Power
Power Consumption
3.3 mW (sleep), 4.7 Watt (maximum), 65 mW (average)
Technical Information
Compatible Bay M.2 2280
Hard Drive Form Factor M.2 2280
Hard Drive Form Factor (metric) M.2 2280
Max Operating Temperature
185 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit MTBF
1,750,000 Hours
Vibration Acceleration (Non-operating) 4.9 gram
Vibration Acceleration (Operating) 5 gram
Vibration Frequency Range (Non-operating) 7-800 Hz
Vibration Frequency Range (Operating) 10-2000 Hz
Product Information
Packaged Quantity 1
Product Type Solid state drive
Dimensions & Weight
Height 0.1 inch
Weight 0.19 ounce
Width 0.9 inch
Depth 3.1 inch
