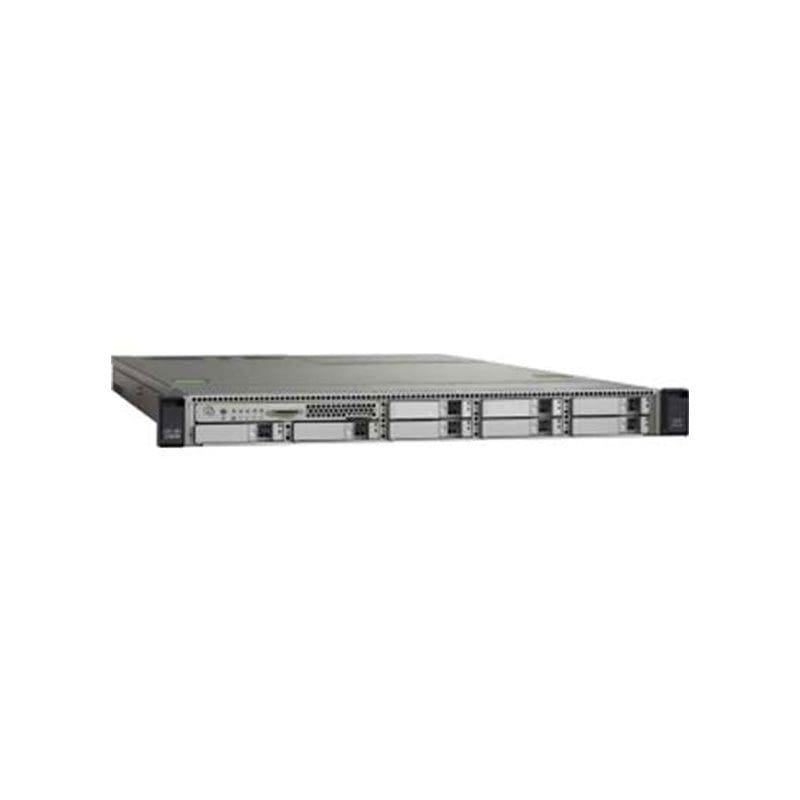

WMS-EZ-C220-50I Cisco UCS C220 M3 High-Density Rack Server

WMS-EZ-C220-50I Overview

The Cisco Unified Computing System (Cisco UCS) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access into a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. These three servers increase compute density through more cores and cache balanced with more memory capacity, disk drives and with faster I/O. Together these server improvements and complementary Cisco UCS advancements deliver the best combination of features and cost efficiency required to support IT’s diverse server needs.


Buy Now
Availability: In Stock

WMS-EZ-C220-50I Technical Specifications

Cisco UCS C220 M3 High-Density Rack Server

Bay Provided
Form Factor :3.5″
Free Qty :0
Total Qty :4 Bays
Cache Memory
Installed Size :30 MB
Per Processor Size :15 MB
Type :L3 cache
Form Factor :Rack-mountable
Hot-Swap Bays Qty :4
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :28.5 in
Height :1.7 in
Weight :22.05 lbs
Width :16.9 in
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :8.9 cm
Type :Hot-swap
Expansion Slots
Size :Half-length
Type :PCIe 2.0 x8
Size :Half-length, full-height
Type :PCIe 2.0 x16
Type :CPU
Type :Memory
Hard Drive
Installed Qty :4
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :7200 rpm
Type :HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Brand :Cisco
Compatibility :PC
Model :C220 M3 High-Density Rack Server Large Form Factor Hard Disk Drive
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 in front
Qty :6
Type :LAN (Gigabit Ethernet)
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Type :KVM
Type :Management (NIC)
Type :VGA
Chipset Type :Intel C600
Processor Socket :LGA2011 Socket
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :1U Rack Mount
Included Accessories :16 GB SD Memory Card, 2 x CPU Heatsink, Rack rail kit
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :2 x Intel I350
Ethernet Ports :6 x Gigabit Ethernet
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :650 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
Type :None
Clock Speed :2.5 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3 GHz
Number of Cores :6-core
Processor Main Features :Enhanced Intel SpeedStep Technology, Hyper-Threading Technology, Intel 64 Technology, Intel Execute Disable Bit, Intel Turbo Boost Technology, Intel Virtualization Technology
Processor Number :E5-2640
Server Scalability :2-way
Type :Xeon
Configuration Features :12 x 4 GB
Data Integrity Check :ECC
Features :Low-voltage, Memory Mirroring, Registered
Installed Size :48 GB
Max Supported Size :256 GB
Memory Specification Compliance :PC3-10600
Memory Speed :1333 MHz
Rated Memory Speed :1333 MHz
Technology :DDR3 SDRAM
