WS-C2950SX-24 Cisco 24-Ports EN Fast EN 10Base-T/100Base-TX + 2x1000BaseSX (Uplink) Catalyst 2950 Switch

WS-C2950SX-24 Overview

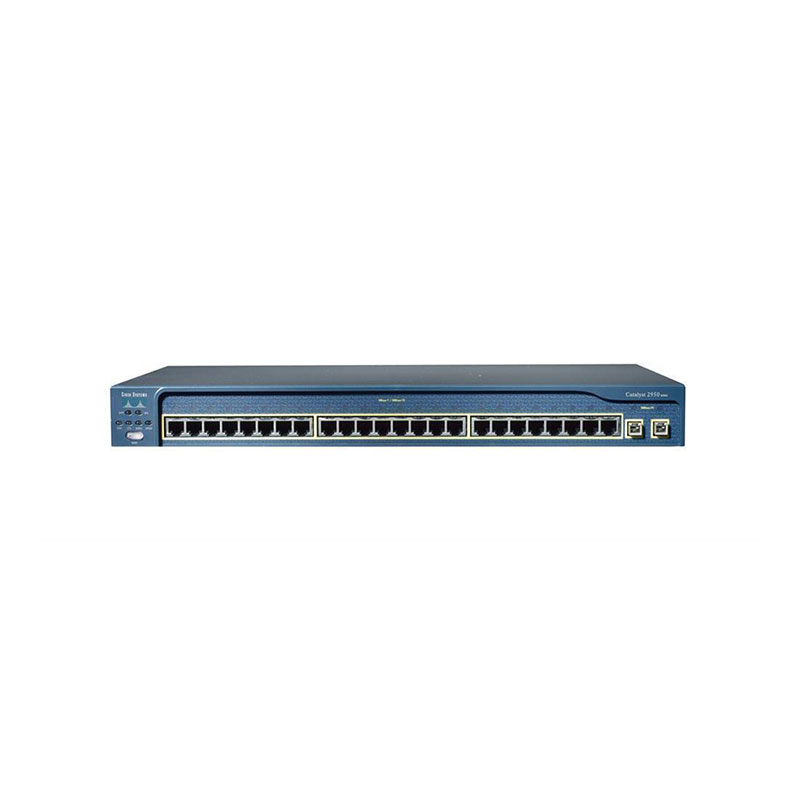

The Cisco Catalyst WS-C2950SX-24 is a 24-port managed Fast Ethernet switch from the Catalyst 2950 series, designed for reliable and cost-effective Layer 2 networking. It provides 24 10/100Base-TX RJ-45 ports for standard Ethernet connectivity, along with 2 uplink ports supporting 1000Base-SX (Gigabit Ethernet over fiber) for high-speed connections to the network core or other switches.This switch supports essential Layer 2 features, including VLANs, Spanning Tree Protocol (STP), port security, and Quality of Service (QoS), allowing for efficient traffic management, network segmentation, and prioritization. The  is designed to deliver enhanced performance and flexibility in small to medium-sized enterprise networks.

Availability: Out of stock
SKU:WS-C2950SX-24
Brand:

WS-C2950SX-24 Technical Specifications

Cisco 24-Ports EN Fast EN 10Base-T/100Base-TX + 2x1000BaseSX (Uplink) Catalyst 2950 Switch

Manufacturer Part Number: WS-C2950SX-24
Brand Name: Cisco
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details: 24 x Fast Ethernet Network,2 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Fast Ethernet
Network Technology: 10Base-T,100Base-TX,1000Base-SX
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Height: 1.7″
Width: 17.5″
Depth: 9.5″
Weight (Approximate): 6.50 lb
