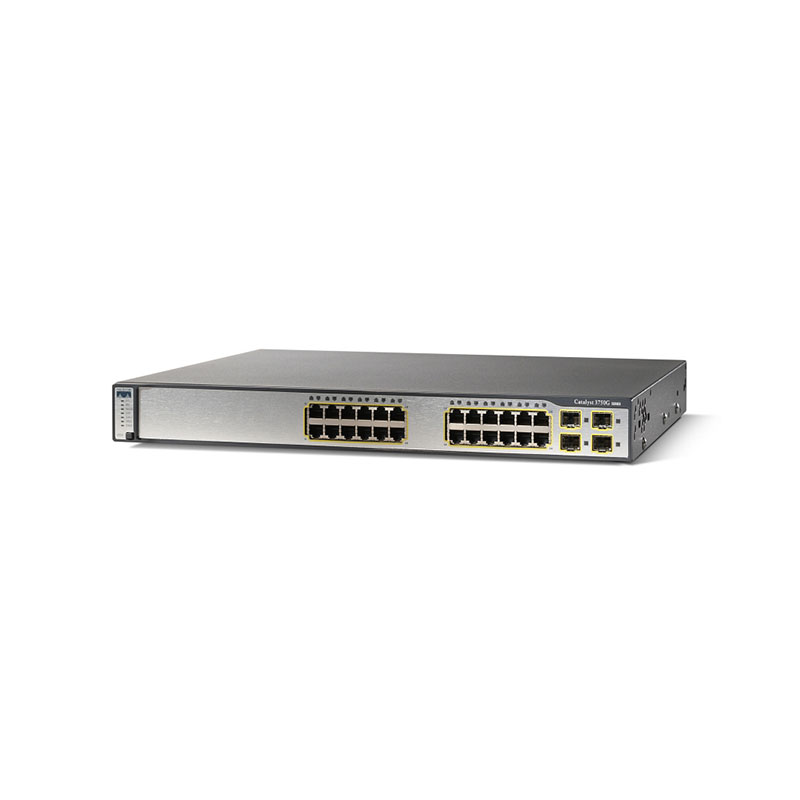

WS-C3750G-24TS-S Cisco 24 x Ports RJ-45 + 4 x SFP Network Switch
WS-C3750G-24TS-S Overview
The Cisco WS-C3750G-24TS-S is a 24-port Gigabit Ethernet Layer 3 switch from the Cisco Catalyst 3750 Series, designed for midsize enterprises and branch office networks requiring high-performance connectivity and advanced manageability.It provides 24 RJ-45 Gigabit Ethernet ports for device connections and 4 SFP uplink ports for fiber expansion, offering flexibility in connecting to distribution or core layers. The switch supports Cisco StackWise technology, enabling up to nine switches to operate as a single unit, simplifying management and scaling network capacity.
WS-C3750G-24TS-S Technical Specifications
Cisco 24 x Ports RJ-45 + 4 x SFP Network Switch
Manufacturer Part Number: WS-C3750G-24TS-S
Brand Name: Cisco
Product Line: Catalyst 3750 Series
Product Type: Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x 1G SFP
Switching Capacity: 32 Gbps
Forwarding Rate: 38.7 Mpps
Layer Support: Layer 2 / Layer 3 Lite
MAC Address Table: 12,000 entries
VLAN Support: Up to 1,024 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Static Routing: Supported (IP Base feature set)
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 4 Priority Queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, Port Security
Management: CLI, Web Device Manager, SNMP v1/v2c/v3, RMON
Stacking Capability: Cisco StackWise (32 Gbps)
