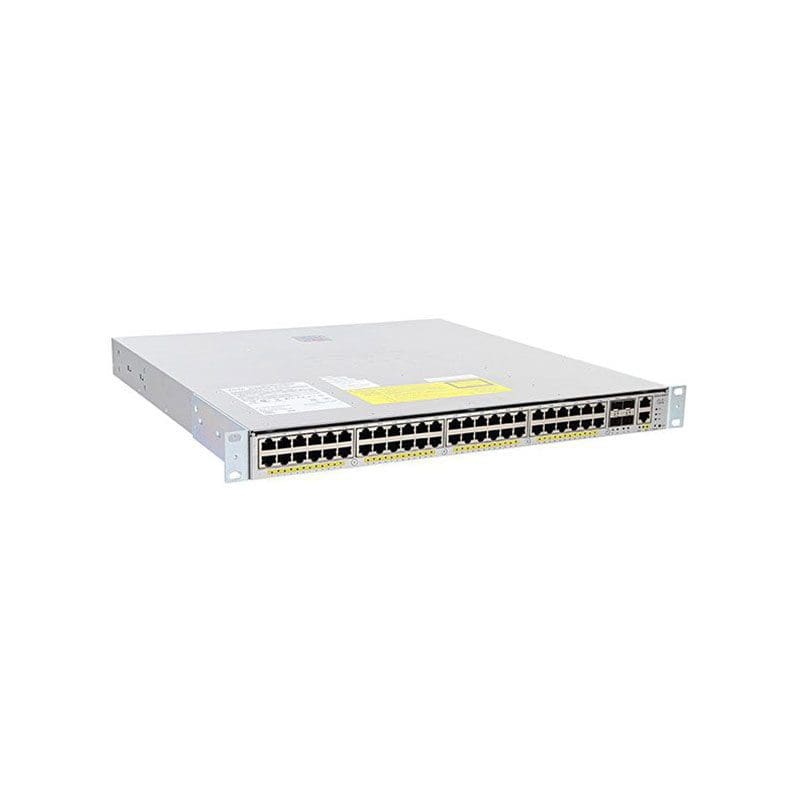

Refurbished WS-C4948E-F Cisco Catalyst 4948E-F

Refurbished WS-C4948E-F Overview

WS-C4948E-F-E belongs to the Cisco Catalyst 4900 Series Switches, it widely used in low density, multilayer aggregation of high performance servers and workstations. The Cisco Catalyst 4948E-F Ethernet Switch is built from the start to deliver class-leading, full-featured server-access switching. The switch offers forty-eight 10/100/1000 Gbps RJ45 downlink ports and four 1/10 Gigabit Ethernet uplink ports and is designed to simplify data center architecture and operations by offering service provider-grade hardware and software in a one Rack Unit (1RU) form factor optimized for full-featured Top-of-Rack (ToR) data center deployments. The Cisco Catalyst 4948E-F, with its advanced multicast support, is optimized for multimedia applications. It supports Protocol Independent Multicast (PIM), Source-Specific Multicast (SSM), and Pragmatic General Multicast (PGM), providing end users with additional scalability to support multimedia applications. Also supported are Internet Group Management Protocol (IGMP) snooping and Multicast Listener Discovery (MLD) snooping in hardware, enhancing performance and reducing network traffic by allowing a switch to dynamically add and remove hosts from a multicast group.


Buy Now
Availability: In Stock

Refurbished WS-C4948E-F Technical Specifications

Cisco Catalyst 4948E-F Managed Switch – 48 Ethernet Ports & 4 10-Gigabit SFP+ Ports

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C4948E-F
Brand Name Cisco
Product Line Cisco Catalyst
Product Series C4948E
Product Model 4948E-F
Product Name Catalyst 4948E-F Ethernet Switch
Product Type Ethernet Switch
Total Number of Network Ports 48
Number of Network (RJ-45) Ports 48
Port/Expansion Slot Details 48 x Gigabit Ethernet Network
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology Fast Ethernet
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 4
Expansion Slot Type SFP+
Number of SFP+ Slots 4
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Command Line Interface
Standard Memory 1 GB
Memory Technology SDRAM
Power Description
Input Voltage 220 V AC
Input Voltage 110 V AC
Power Source Power Supply
Redundant Power Supply Yes
