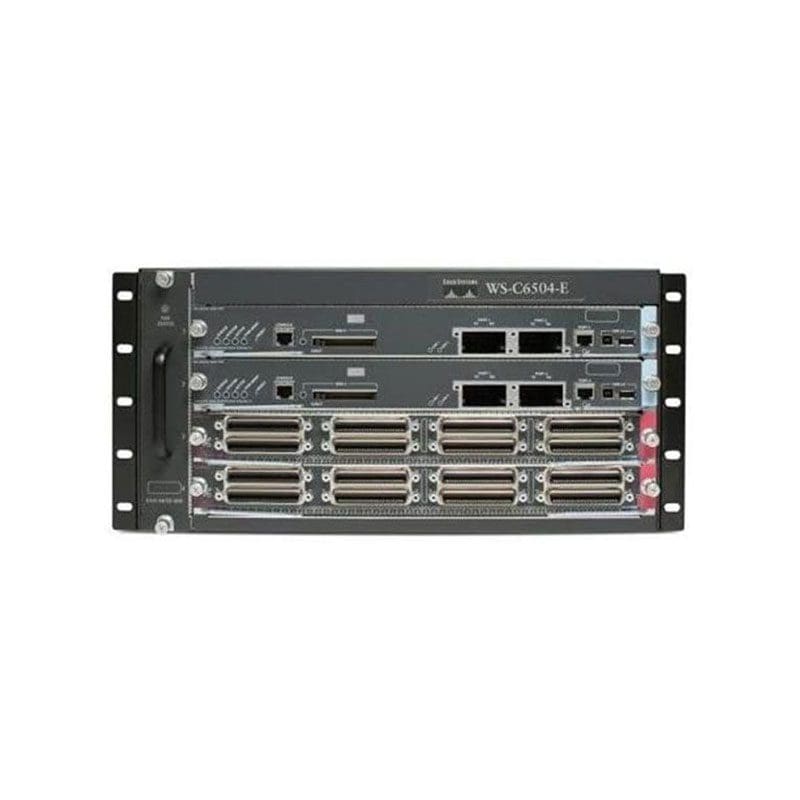

Refurbished WS-C6504-E Technical Specifications
Catalyst 6500 Enhanced 4-slot chassis 5RU
Product Line Cisco Catalyst
Product Series C6504E
Product Type Switch Chassis
Number of Slots: 4
Supervisor Compatibility
Cisco Catalyst 6500 Series Supervisor Engine 32
Cisco Catalyst 6500 Series Supervisor Engine 720-3B
Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL
Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C
Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL
Cisco Catalyst 6500 Series Supervisor Engine 2T
Power Supply Compatibility
* Indicates EoS Power Supply
AC: 2700W
DC: 2700W
Module Compatibility
All modules based on the software release in the system
Software Compatibility (Minimum Software Version)
With Supervisor Engine 32
● 12.2(18)SXF
With Supervisor Engine 720
● 12.2(18)SXE
With Supervisor Engine 720-10 GE
● 12.2(33)SXH
With Supervisor Engine 2T-10 GE
● 15.0(1)SY
Reliability and Availability
Calculated Mean Time Between Failure (MTBF)
677,643
MIBS
Check the corresponding supervisor engine data sheet
Network Management
Check the corresponding supervisor engine data sheet
Physical Dimensions
Inches
8.75 x 17.5 x 21.75
Centimeters
22.2 x 44.45 x 55.25
Rack Units (RU)5
Weight
Chassis Only (lbs)40
Fully Configured (lbs)97
Input Voltage
100 to 240 VAC
-48 to -60 VDC
Safety
UL 60950 Second Edition
CAN/CSA-C22.2 No. 60950 Second Edition
EN 60950 Second Edition
IEC 60950 Second Edition
AS/NZS 60950
EMC
FCC Part 15 (CFR 47) Class A
VCCI Class A
EN55022 Class A
CISPR 22 Class A
CE marking
AS/NZS 3548 Class A
ETS300 386
EN55024
EN61000-6-1
EN50082-1
NEBS/ETSI
GR-1089-Core NEBS Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3
ETS 300 019 Stationary Use Class 3.1
ATIS Pb free and Energy Efficiency
ATIS-0600020.2010 Pb Free circuit packs
ATIS-0600015-2009 General Energy Efficiency Requirements (TEER)
ATIS-0600015.03-2009 Switch and Router Energy Efficiency
ATIS-0600015.01-2009 Server Energy Efficiency
VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER)
Operating Environment
Operating Temperature
32°F to 104°F (0 to 40°C)
Storage Temperature
-4 to 149°F (-20 to 65°C)
Thermal Transition
0.5°C per minute (hot to cold)
0. 33°C per minute (cold to hot)
Relative Humidity
Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Operating Altitude
Certified for operation: 0 to 6500 ft (0 to 2000 m)
Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
