Refurbished WS-C6504-E-WISM Technical Specifications

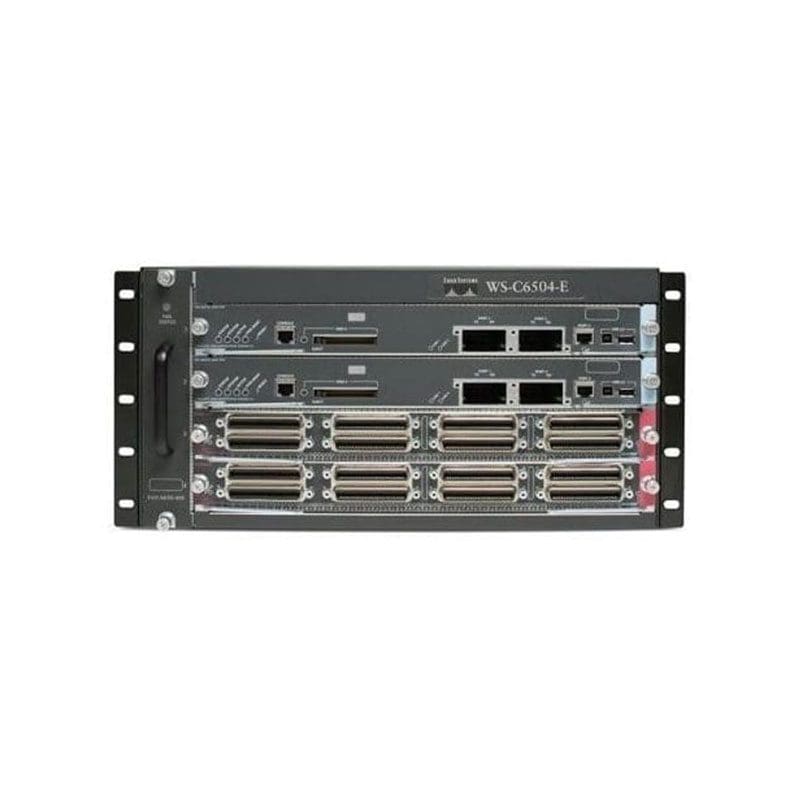

Cisco 6500 Switch Catalyst 6504-E WiSM Bundle
Manufacturer Cisco
Manufacturer Part # WS-C6504-E-WISM
Product Line Cisco Catalyst
Product Series C6504E
Product Type Switch Bundle
Product Description Cisco Catalyst 6504-E with WiSM Bundle – switch – managed – desktop
Device Type Switch – managed
Enclosure Type Desktop 5U
Interfaces Gigabit Ethernet
Ports 1 x SFP + 1 x combo Gigabit SFP
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM
Remote Management Protocol Telnet, HTTP, HTTPS
Features MPLS support, VLAN support, IPv6 support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11h
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Yes
Dimensions (WxDxH) 17.5 in x 21.7 in x 8.7 in
General
Device Type Switch – managed
Enclosure Type Desktop – 5U
Interfaces Gigabit Ethernet
Ports 1 x SFP + 1 x combo Gigabit SFP
MAC Address Table Size 32K entries
Routing Protocol OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM
Remote Management Protocol Telnet, HTTP, HTTPS
Features MPLS support, VLAN support, IPv6 support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11h
RAM 1 GB
Expansion / Connectivity
Interfaces 1 x 1000Base-T – RJ-45
2 x serial (RS-232) – management
2 x SFP (mini-GBIC)
Expansion Slots 4 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max) 2 (installed) / 4 (max)
Power
Power Device Internal power supply – hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Voltage Required AC 120/230 V ( 50/60 Hz )
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548
Dimensions & Weight
Width 17.5 in
Depth 21.7 in
Height 8.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90%
