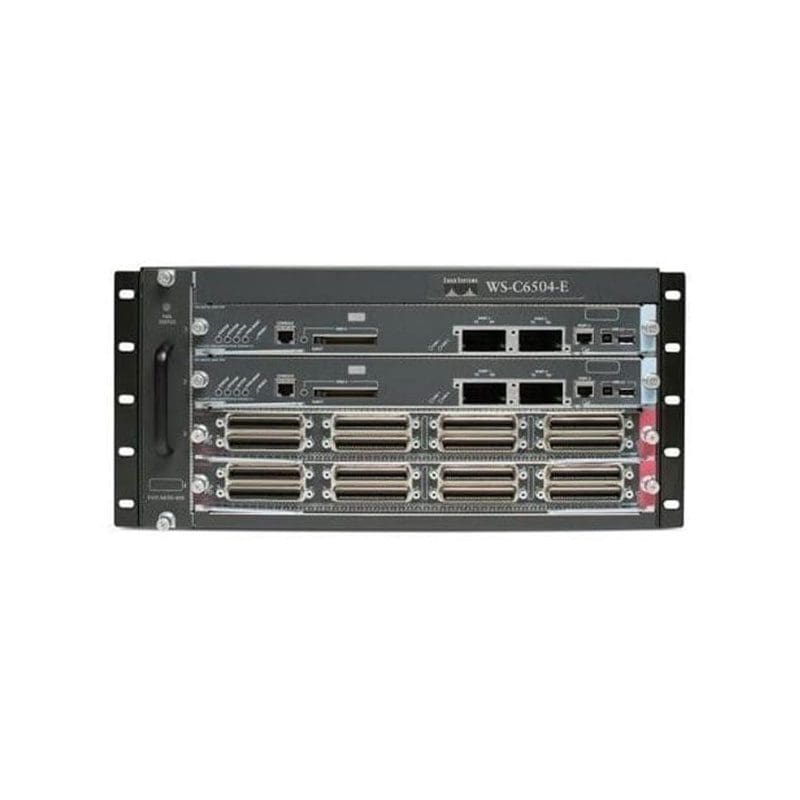

Refurbished WS-C6504E-ACE20-K9 Cisco Catalyst Switch

Refurbished WS-C6504E-ACE20-K9 Technical Specifications

Cisco Catalyst Switch ACE20 4G 6504E Bundle

Manufacturer Cisco
Product Line Cisco Catalyst
Product Series C6504E
Manufacturer Part # WS-C6504E-ACE20-K9
Product Description Cisco Catalyst 6504-E Application Control Engine (ACE) 20 Bundle – switch – rack-mountable
Device Type Switch Bundle
Enclosure Type Rack-mountable 5U
Features Modular design
Dimensions (WxDxH) 17.5 in x 21.7 in x 8.7 in
Weight 39.9 lbs
General
Device Type Switch
Enclosure Type Rack-mountable – 5U
Features Modular design
Expansion / Connectivity
Expansion Slots 4 (total) / 3 (free) x expansion slot
Installed Modules Qty (Max) 1 (installed) / 4 (max)
Miscellaneous
MTBF 7 years
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 3260, AS/NZ 3548 Class A, EMC, FCC Part 15, CSA C22.2 No. 60950-00, ICES-003 Class A
Software / System Requirements
Software Included Cisco Application Control Engine (4 Gbps throughput)
Dimensions & Weight
Width 17.5 in
Depth 21.7 in
Height 8.7 in
Weight 39.9 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
