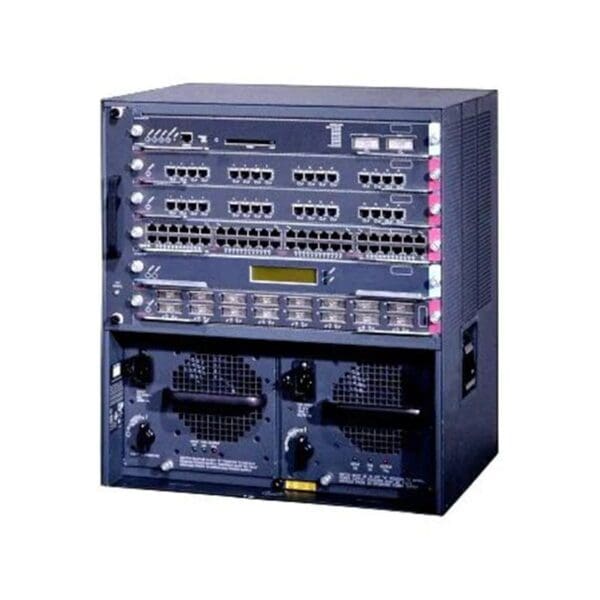

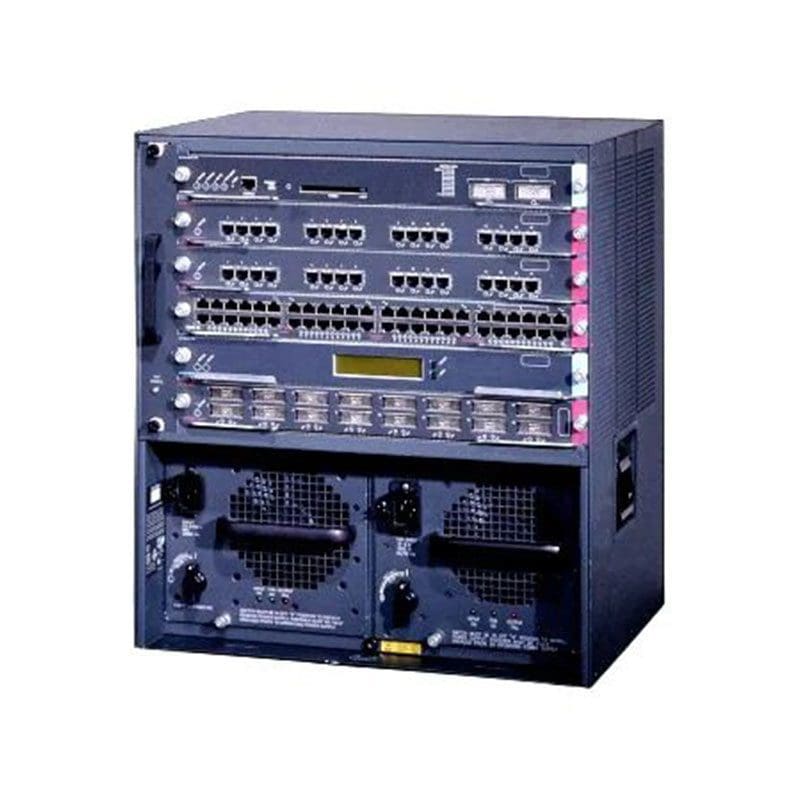

Refurbished WS-C6506-E Technical Specifications
Catalyst 6500 Enhanced 6-slot chassis 12RU
Product Line Cisco Catalyst
Product Series C6506E
Product Type Switch Chassis
Number of Slots: 6
Supervisor Compatibility
Cisco Catalyst 6500 Series Supervisor Engine 32
Cisco Catalyst 6500 Series Supervisor Engine 720-3B
Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL
Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C
Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL
Cisco Catalyst 6500 Series Supervisor Engine 2T
Power Supply Compatibility
* Indicates EoS Power Supply
AC: 2500W*, 3000W, 4000W, 6000W, 8700W
DC: 2500W, 4000W, 6000W
Module Compatibility
All modules based on the software release in the system
With Supervisor Engine 32
12.2(18)SXF
With Supervisor Engine 720
12.2(14)SX
With Supervisor Engine 720-10 GE
12.2(33)SXH
With Supervisor Engine 2T-10 GE
15.0(1)SY
Reliability and Availability
Calculated Mean Time Between Failure (MTBF)
441,418
Inches
19.2 x 17.5 x 18
Centimeters
48.8 x 44.5 x 46.0
Rack Units (RU)11
Chassis Only (lbs)50
Fully Configured (lbs)159
Input Voltage
100 to 240 VAC
-48 to -60 VDC
Safety
UL 60950 Second Edition
CAN/CSA-C22.2 No. 60950 Second Edition
EN 60950 Second Edition
IEC 60950 Second Edition
AS/NZS 60950
EMC
FCC Part 15 (CFR 47) Class A
VCCI Class A
EN55022 Class A
CISPR 22 Class A
CE marking
AS/NZS 3548 Class A
ETS300 386
EN55024
EN61000-6-1
EN50082-1
NEBS/ETSI
GR-1089-Core NEBS Level 3
ETS 300 019 Storage Class 1.1
ETS 300 019 Transportation Class 2.3
ETS 300 019 Stationary Use Class 3.1
ATIS Pb free and Energy Efficiency
ATIS-0600020.2010 Pb Free circuit packs
ATIS-0600015-2009 General Energy Efficiency Requirements (TEER)
ATIS-0600015.03-2009 Switch and Router Energy Efficiency
ATIS-0600015.01-2009 Server Energy Efficiency
VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER)
Operating Temperature
32°F to 104°F (0 to 40°C)
Storage Temperature
-4 to 149°F (-20 to 65°C)
Thermal Transition
0.5°C per minute (hot to cold)
33°C per minute (cold to hot)
Relative Humidity
Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Operating Altitude
Certified for operation: 0 to 6500 ft (0 to 2000 m)
Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
