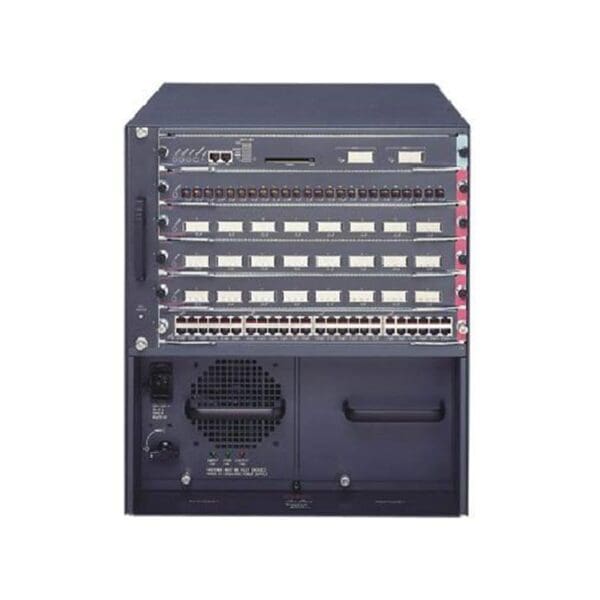

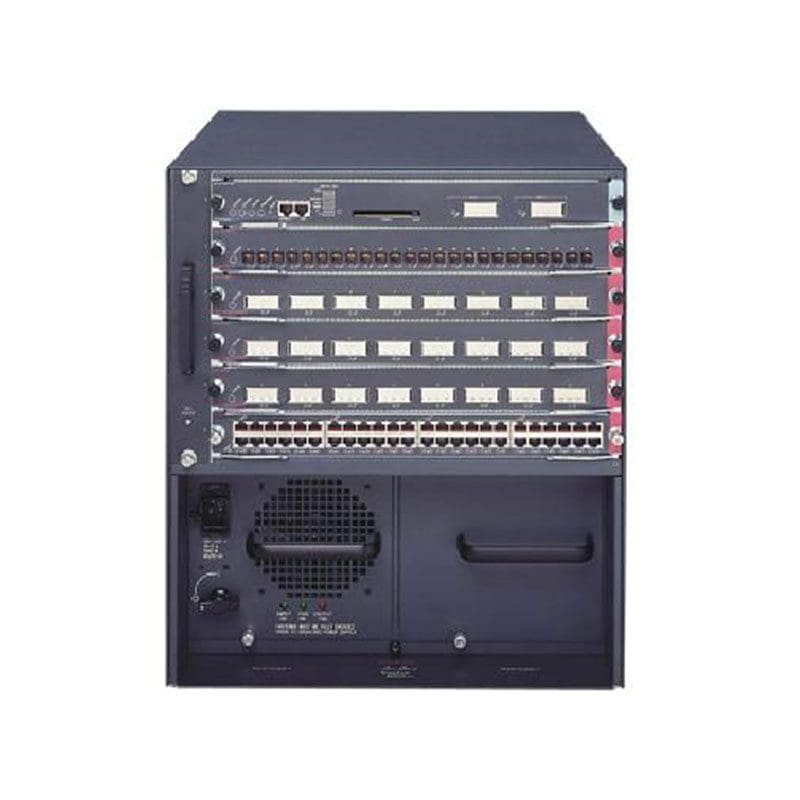

Refurbished WS-C6506E-S32-10GE Technical Specifications
Cisco 6500 Switch Cat6506E chassis, WS-SUP32-10GE-3B, Fan Tray (req.P/S)
Manufacturer Cisco
Manufacturer Part # WS-C6506E-S32-10GE
Product Line Cisco Catalyst
Product Type Switch Chassis
Product Description Cisco Catalyst C6506E – switch – managed – desktop – with Supervisor Engine 32
Device Type Switch – managed – with Supervisor Engine 32
Enclosure Type Desktop 12U
Interfaces 10 Gigabit Ethernet
Ports 2 x XENPAK
Routing Protocol GRE
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features NAT support, MPLS support, IPv6 support
Compliant Standards IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Dimensions (WxDxH) 17.5 in x 18.1 in x 19.2 in
General
Device Type Switch – managed – with Supervisor Engine 32
Enclosure Type Desktop – 12U
Interfaces 10 Gigabit Ethernet
Ports 2 x XENPAK
Routing Protocol GRE
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features NAT support, MPLS support, IPv6 support
Compliant Standards IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 256 MB (installed) / 1 GB (max)
Flash Memory 256 MB (installed) / 1 GB (max) – flash
Expansion / Connectivity
Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – management
2 x USB
2 x XENPAK
Expansion Slots 6 (total) / 5 (free) x expansion slot
Installed Modules Qty (Max) 1 (installed) / 6 (max)
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548
Dimensions & Weight
Width 17.5 in
Depth 18.1 in
Height 19.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90%
