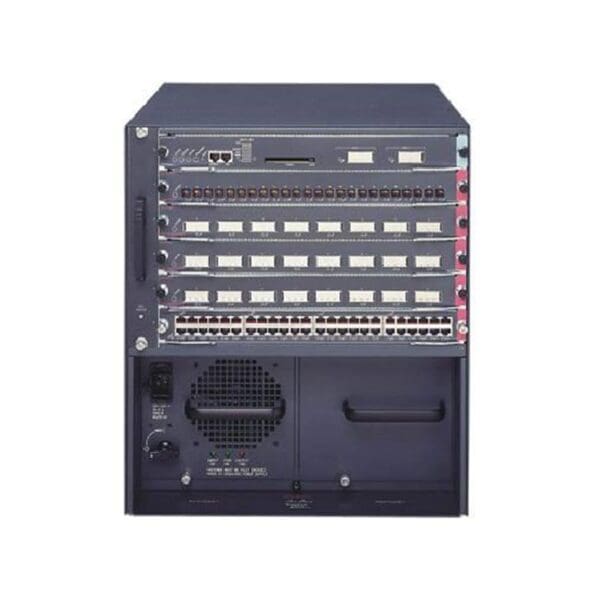

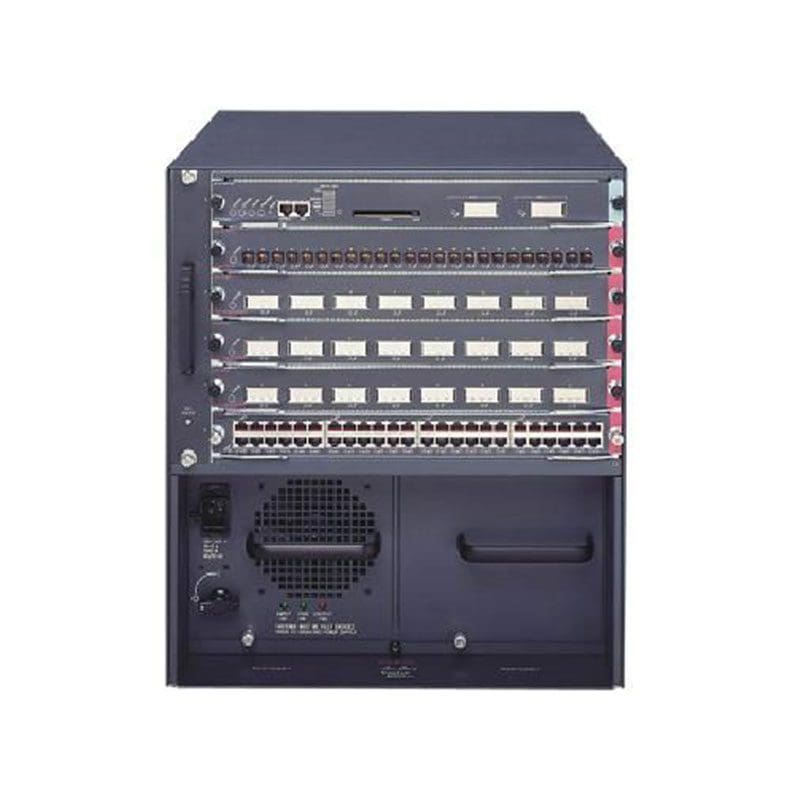

Refurbished WS-C6506E-S32P-GE Technical Specifications
Cisco Catalyst 6506E chassis, WS-S32-GE-PISA, Fan Tray
Manufacturer Cisco
Product Line Cisco Catalyst
Product Series C6506E
Product Type Switch Chassis
Manufacturer Part # WS-C6506E-S32P-GE
Device Type Switch – 8 ports – Managed – with Cisco Catalyst 6500 Supervisor Engine 32 with PISA and 8 GE
Enclosure Type Rack-mountable 12U
Interfaces Gigabit Ethernet
Ports 8 x Gigabit SFP
Routing Protocol OSPF, BGP-4, IS-IS, EIGRP, IGMPv2, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, RIPng
Remote Management Protocol Telnet, SNMP 3
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power Redundancy Yes
Dimensions (WxDxH) 44.5 cm x 46 cm x 48.8 cm
General
Device Type Switch – 8 ports – Managed – with Cisco Catalyst 6500 Supervisor Engine 32 with PISA and 8 GE
Enclosure Type Rack-mountable – 12U
Interfaces Gigabit Ethernet
Ports 8 x Gigabit SFP
Routing Protocol OSPF, BGP-4, IS-IS, EIGRP, IGMPv2, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, RIPng
Remote Management Protocol Telnet, SNMP 3
Features Flow control, DHCP support, VPN support, ARP support, MPLS support, IGMP snooping, DoS attack prevention, IPv6 support, MPLS Fast Reroute (FRR), MPLS VPN
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 512 MB
Flash Memory 256 MB
Status Indicators Port status, power, link OK, system, active
Expansion / Connectivity
Interfaces 2 x USB 2.0
1 x console – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
8 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 1 (free) x PC Card
6 (total) / 5 (free) x Expansion Slot
Installed Modules Qty (Max) 1 (installed) / 6 (max)
Power
Power Device Internal power supply – hot-plug
Installed Qty 2 (max)
Power Redundancy Yes
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548
Dimensions & Weight
Width 44.5 cm
Depth 46 cm
Height 48.8 cm
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 – 90%
