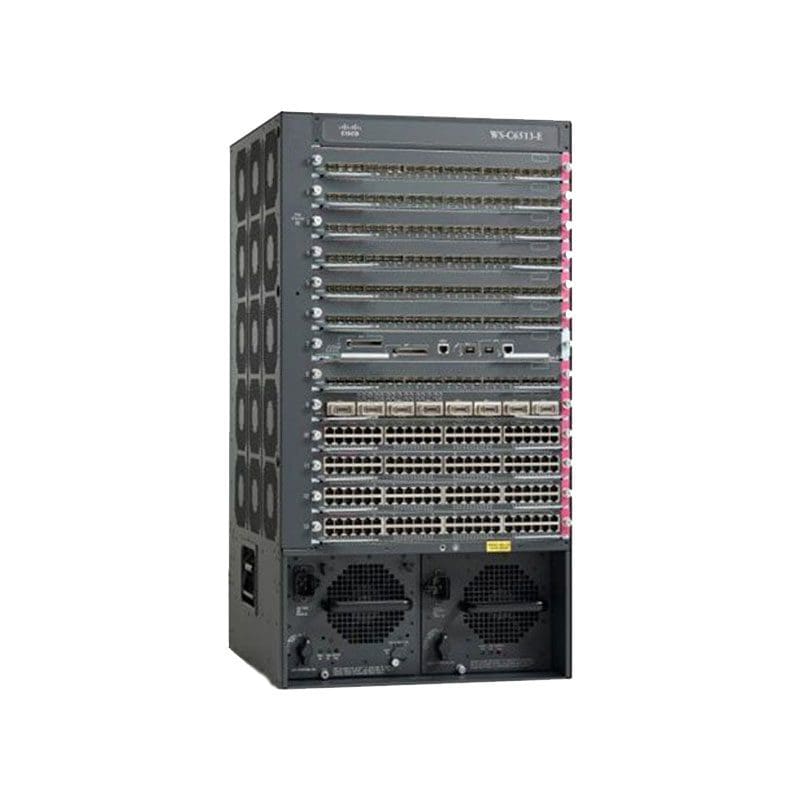

Refurbished WS-C6513-E Cisco Enhanced C6513
Refurbished WS-C6513-E Overview
The 13-slot Cisco Catalyst 6513-E Switch provides high port densities that are ideal for many wiring closet, distribution, and core network as well as data center deployments with exceptional functionality and flexibility. Supervisor engine redundancy and power redundancy supporting deliver the low latency and high scalability network experience to ensure superior reliability for edging or core network. Any two Cisco Catalyst 6500E series Switches with Supervisor Engine 720-3C/720-3CXL/S2T-10G/S2T-10G-XL can be pooled together into a VSS, the Chassis delivers up to 180 Gbps per-slot bandwidth and will be capable of delivering up to 8 Tbps of system bandwidth.
$1,490
Buy NowRefurbished WS-C6513-E Technical Specifications
Cisco Enhanced C6513 13 Slot Chassis
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C6513-E
Brand Name Cisco
Product Line Cisco Catalyst
Product Series C6500
Product Model C6513
Product Name Catalyst 6513 Enhanced Chassis
Product Type Switch Chassis
Interfaces/Ports:
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular No
Management Port No
USB No
Stack Port No
I/O Expansions:
Number of Total Expansion Slots 13
Network & Communication:
Layer Supported 3
Management & Protocols:
Manageable Yes
Management-
Command-line interface
VLAN
DHCP
Telnet
SNMP v1,v2c
CiscoWorks
CiscoView
RMON 1,2
Syslog
Web-based network management
Power Description:
PoE (RJ-45) Port No
Input Voltage-
110 V AC
220 V AC
Power Source Power Supply
Redundant Power Supply Yes
Miscellaneous:
Certifications & Standards
Safety:
UL 1950
EN 60950
CSA-C22.2 no. 950
IEC 60950
AS/NZA 3260
21 CFR 1040
EN 60825-1
IEC 60825-1
TS 001
EMC:
FCC (CFR 47, Part 15) Class A
VCCI
CE Marking
EN 55022
EN 55024
CISPR 22
AS/NZS 3548
NEBS Level 3 (GR-1089-CORE, GR-63-CORE)
ETSI ETS-300386-2
IEEE Compliance:
802.1d
802.1p
802.1s
802.1w
802.1x
802.3
802.3ad
802.3ab
802.3ae
802.3af
802.3u
802.3x
802.3z
