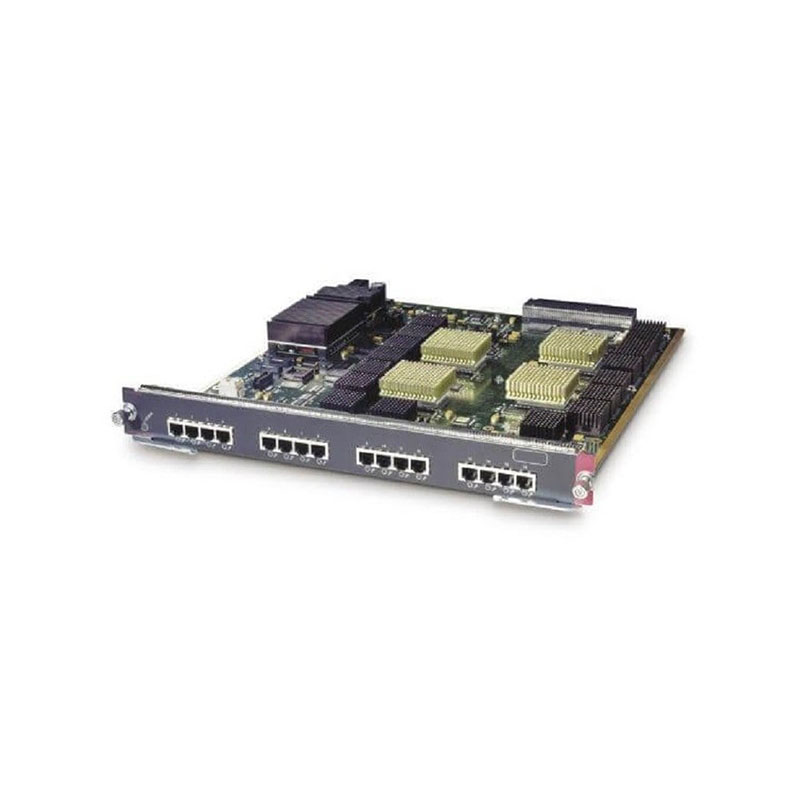

WS-X6316-GE-TX Cisco 16 Ports Ethernet Module
WS-X6316-GE-TX Overview
The Cisco WS-X6316-GE-TX is a line card module designed to be inserted into Cisco Catalyst 6000 series switches. It provides 16 ports of Gigabit Ethernet connectivity, each supporting data transfer speeds of up to 1 Gbps. This switching module is ideal for expanding the network capacity of enterprise environments, accommodating the growing demand for high-speed connectivity.
Enterprise Networks: In large enterprise networks, the module can be used to connect multiple departments, floors, or buildings, providing high-speed connectivity for data-intensive applications and services.
WS-X6316-GE-TX Technical Specifications
Cisco Catalyst 6000 16-Ports 1000TX 1 Gigabits Per Second (Gbps) Gigabit Gigabit Ethernet Switching Module
Manufacturer: Cisco
Part Number: WS-X6316-GE-TX
Product Name: Catalyst Switching Module
Product Type: Switching Module
Technical Information
Application/Usage: Switching Network
Interfaces/Ports
Interfaces/Ports: 16 x 1000Base-T LAN
Interfaces/Ports: Details 16 x RJ-45 1000Base-T LAN
Media & Performance
Connectivity Media Category 5 UTP
Distance Supported 328.08 ft Category 5 UTP
Environmental Conditions
Temperature -40°F (-40°C) to 167°F (75°C) Storage
Temperature 32°F (0°C) to 104°F (40°C) Operating
Humidity 10% to 90% Non-condensing Relative Humidity
Altitude -196.84 ft to 13123.32 ft Operating
