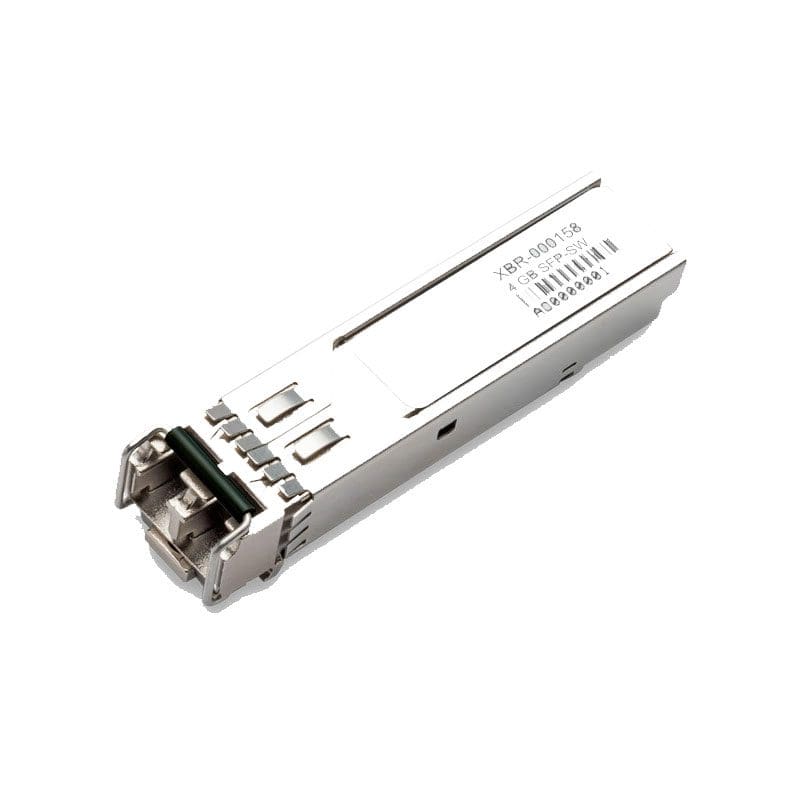

XBR-000158 Technical Specifications
Brocade 4Gb Short Wavelength Optical Transceiver
Form Factor: SFP
Data Rate: 4.25/2.125/1.0625 4Gbit/sec
Wavelength: 850 nm
Connector: LC Duplex
Cable Type: MMF
Reach Distance: 70m@OM1, 150m@OM2, 380m@OM3
Operating Temperature Range: 0°C to 70°C
Digital Optical Monitoring (DOM): With
Applications: 4G/2G/1G FC
