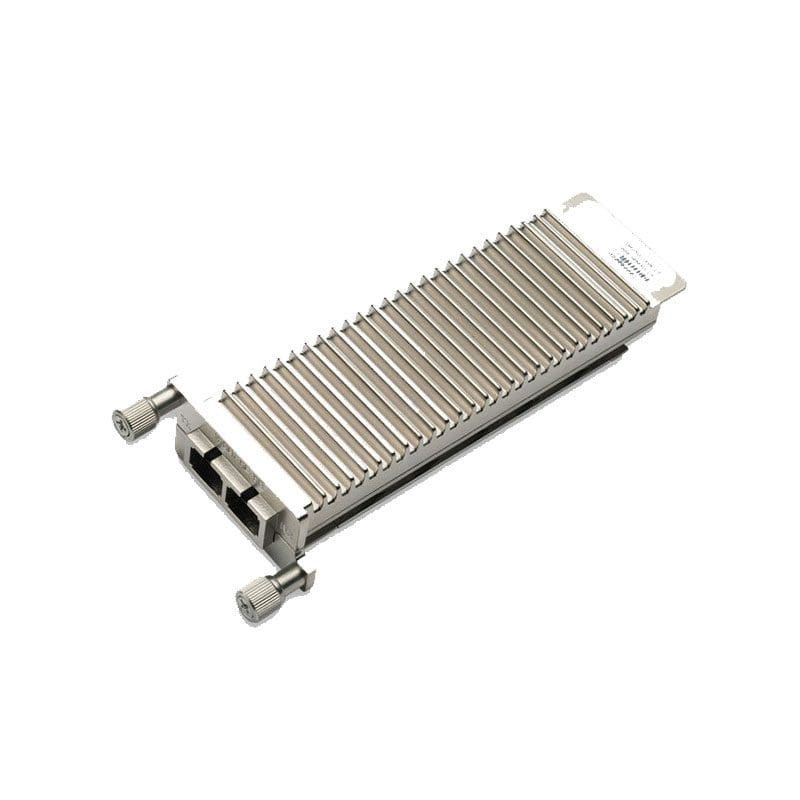

XENPAK-1XGE-SR Juniper 10GBase-SR XENPAK Optic Module

XENPAK-1XGE-SR Technical Specifications

Juniper 10GBase-SR XENPAK Optic Module 1 x 10GBase-SR

General Information:
Manufacturer: Juniper Networks, Inc
Manufacturer Part Number XENPAK-1XGE-SR
Brand Name: Juniper
Product Name: 10GBase-SR XENPAK Optic Module
Product Type: XENPAK
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports: 1 x 10GBase-SR
Interfaces/Ports Details: 1 x SC Duplex 10GBase-SR
Media & Performance
Connectivity Media: 50/125 µm Multi-mode Optical Fiber (MMF)
Connectivity Media: 62.5/125 µm Multi-mode Optical Fiber
Data Transfer Rate: 10 Gbps Gigabit Ethernet
Ethernet Technology: 10 Gigabit Ethernet
Miscellaneous
Additional Information Wavelength: 840 to 865 nm
Average launch power: -4.5 through -1 dBm
Receiver saturation: – 1.0 dBm
Receiver sensitivity: -7.5 dBm
Length:
108-ft/33-m on 62.5/125 micrometer MMF
984- ft/300-m on 50 micrometer MMF
Compatibility Supported Module: PC-1XGE-XENPAK
Supported Platform: M320, T320, T640
