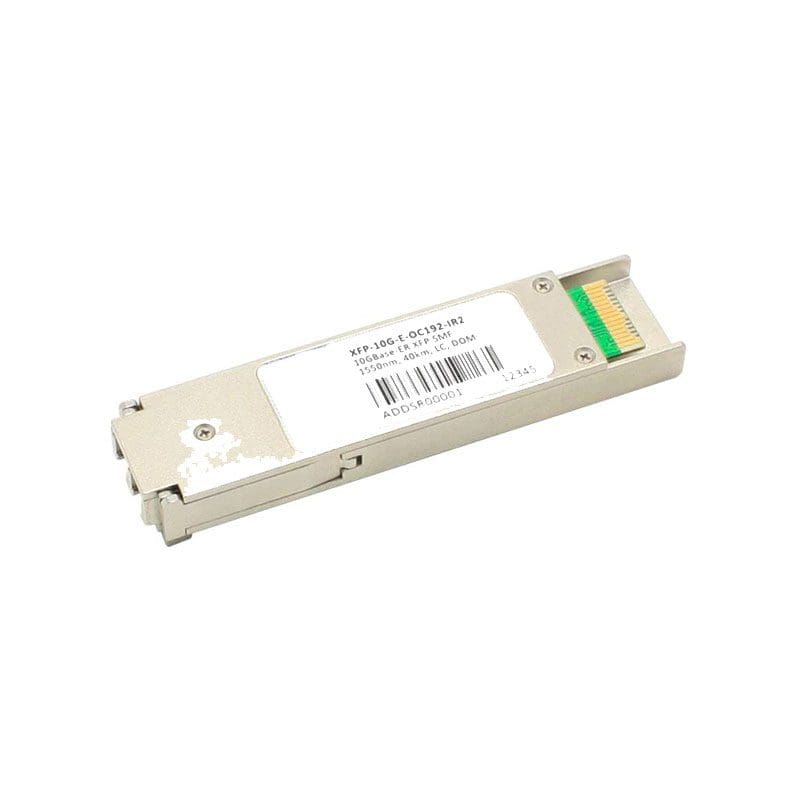

XFP-10G-E-OC192-IR2 Juniper Transceiver Module

XFP-10G-E-OC192-IR2 Technical Specifications

Juniper Transceiver Module

PRODUCT TYPE: XFP
APPLICATION/USAGE: DATA NETWORKING
INTERFACES/PORTS: 1 X 10GBASE-E
INTERFACES/PORTS DETAILS: 1 X 10GBASE-E
CONNECTIVITY MEDIA: 9/125 µM SINGLE-MODE OPTICAL FIBER (SMF)
DATA TRANSFER RATE: 10 GBPS GIGABIT ETHERNET
Ethernet Technology: 10 Gigabit Ethernet
COMPATIBILITY: M120 ROUTERS.
Transmitter wavelengths (range): 1530 nm through 1565 nm
Transmitter output power, each lane (minimum): –4.7 dBm
Transmitter output power, each lane (maximum): 4.0 dBm
Receiver input power, each lane (minimum): –15.8 dBm
Receiver input power, each lane (maximum): –1.0 dBm
Cable type: SMF
Core size/cladding: 9/125 µm
Distance: 40 km
Maximum Power consumption (W): 3.5 W
Operating Temperature (range): –5° C to 75° C
Storage temperature: –40° C to 85° C
