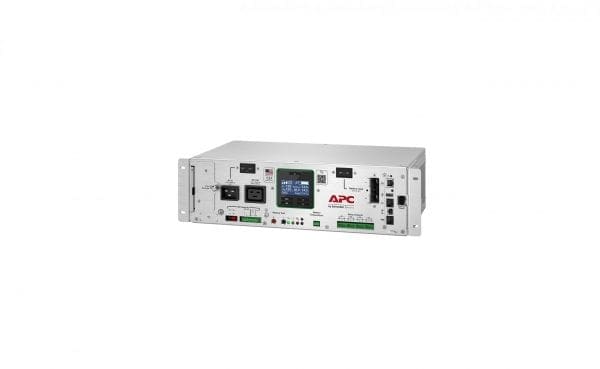

XP1K9NN42RCC SmartUPS Industrial Power Management Unit

XP1K9NN42RCC Technical Specifications

SmartUPS Industrial Power Management Unit 1900W 115/120VAC In/Out with 48/24VDC Out RM Conformal Coated

Manufacturer :APC
Brand :APC
Product Line :APC SecureUPS
Model :Power Management Unit
Packaged Quantity :1
General
Subcategory :Surge protection and power conditioning
Product Type :Line conditioner
Networking
Remote Management Interface :Ethernet, USB
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x management (Ethernet) – RJ-45, 1 x RS-232 – RJ-45, 1 x USB – 4 pin USB Type A, 2 x monitoring
Cable Details
Cables Included :2 x power connector adapter – external, 3 x power cable – external
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 120 / DC 24 / DC 48 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Voltage Required :AC 120 volt
Input Voltage Range :AC 78 – 137 V
Frequency Required :45 – 65 hertz
Circuit Protection :Circuit breaker
Power Device Features :LED indicators, LCD display
Miscellaneous
Color Category :Silver
Included Accessories :Temperature sensor
Rack Mounting Kit :Included
Height (Rack Units) :3
Dimensions & Weight
Width :17.1 inch
Depth :10.3 inch
Height :5.1 inch
Weight :19.4 lbs
Dimensions & Weight (Shipping)
Shipping Width :21.9 inch
Shipping Depth :14.6 inch
Shipping Height :11.8 inch
Shipping Weight :26.46 lbs
Environmental Parameters
Min Operating Temperature :-34.6 degree Fahrenheit
Max Operating Temperature :165.2 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
