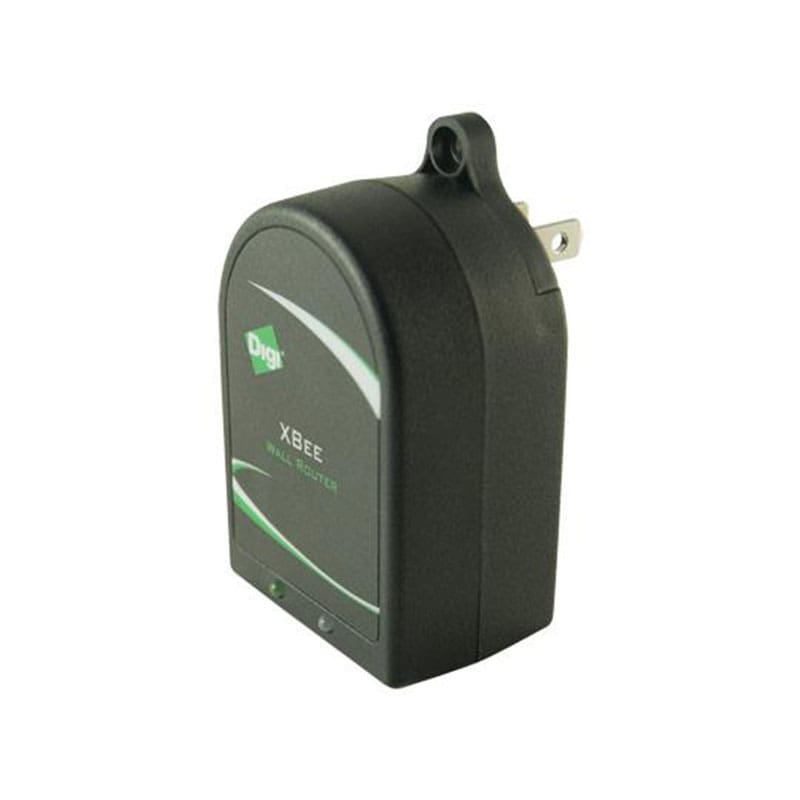

XR-Z14-CW1P1 Digi International

XR-Z14-CW1P1 Technical Specifications

Digi International

Manufacturer: Digi International
MFG Part #: XR-Z14-CW1P1
Antenna Connector Type Internal
Data Rate 250 kb/s
Dimensions 73 mm x 50 mm x 35 mm
Frequency 2.4 GHz
Maximum Operating Temperature + 70 C
Minimum Operating Temperature 0 C
Operating Supply Voltage 85 VAC to 265 VAC
Output Power 17 dBm
Protocol – ANT, Thread, Zigbee – 802.15.4 802.15.4 (ANT, Thread, Zigbee)
Protocol – Sub GHz RFID
Range 300 ft, 1 mile
Sensitivity – 102 dBm
Standard Pack Qty 1
Subcategory Wireless & RF Modules
Supply Voltage – Max 265 VAC
Supply Voltage – Min 85 VAC
