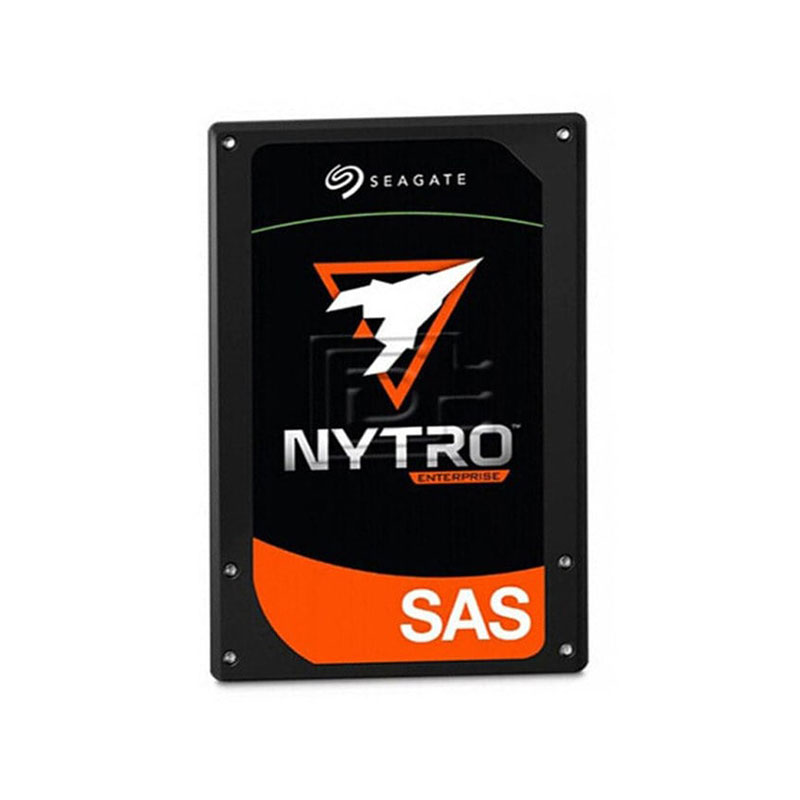

XS7680TE70014 Seagate 7.68TB SAS 12Gbps Solid State Drive (SSD)
XS7680TE70014 Overview
The Seagate XS7680TE70014 7.68TB SAS 12GBPS TLC internal SSD is a high-performance storage solution designed for enterprise-level applications. It uses SAS (Serial Attached SCSI) 12GB/s interface for data transfer, providing fast read and write speeds.
The drive features a storage capacity of 7.68TB, making it suitable for large-scale data storage and data centers. The TLC (Triple-Level Cell) NAND flash memory technology used in this drive is cost-effective and provides high density storage, but with lower endurance and write cycles than MLC or SLC.
$2,915
XS7680TE70014 Technical Specifications
Seagate Nytro 3131 Series 7.68TB eTLC SAS 12Gbps Read Intensive (SED) 2.5-inch Internal Solid State Drive (SSD)
Manufacturer: Seagate
Part Number or SKU# XS7680TE70014
Device Type: Solid State Drive (SSD)
Interface: SAS 12GBPS
Technical Information of 7.68TB Solid State Drive
Capacity: 7.68TB
Flash Memory Technology: Enterprise TLC (eTLC)
Random Read IOPS: 230000
Random Write IOPS: 45000
MTBF: 2500000 Hour(s)
Form Factor: 2.5 Inch 15MM SFF
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 1100/1000
Performance for this SAS 12GBPS SSD
Sequential Read (MB/s) Sustained, 128KB 2000
Sequential Write (MB/s) Sustained, 128KB 1550
Random Write (IOPS) Sustained, 4KB 45,000
Reliability for Read Intensive Solid State Drive
Total Bytes Written (TB) 13,600
Power Management
+5/+12V Max Start Current (A) 0.80/0.21
Average Idle Power (W) 4.4
Dimensions & Weight
Height: 0.591 inch
Width: 2.760 inch
Depth: 3.955 inch
Weight: 0.364 Lbs
