XU1K3LLXXRCC Technical Specifications

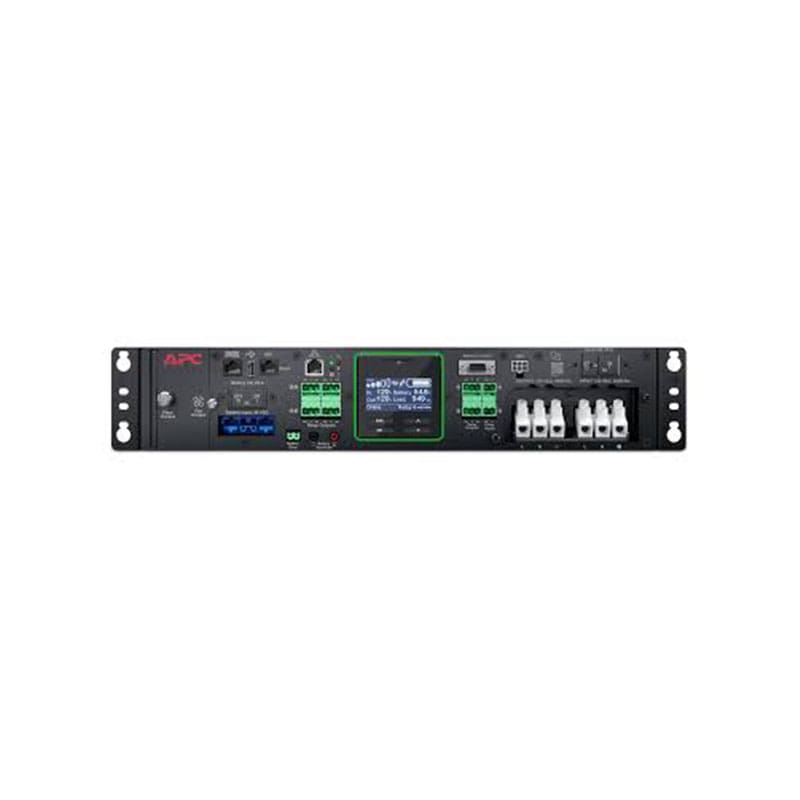

APC SmartUPS Industrial 1300VA / 1300W, 120VAC In/Out RM Conformal Coated
Manufacturer :APC
Brand :APC
Product Line :APC SecureUPS
Model :XU1K3LLXXRCC
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Cable Details
Cables Included :Power cable – external
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1300 watt
Power Capacity (VA) :1300 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 88 – 148 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (1PH + N + G)
Input Connector Qty :1
Output Connector Type :Hardwire 3-wire (HN + G)
Output Connector Qty :1
Surge Suppression :Yes
Surge Energy Rating :432 joules
Efficiency :88%
Power Device Features :Audible alarm, LCD display, Internal bypass
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (HN + G)
UPS
UPS Battery :No battery
Miscellaneous
Color Category :Black
Height (Rack Units) :2
Compliant Standards :IP20, REACH, CSA, UL 1778, RoHS
Dimensions & Weight
Width :17.1 inch
Depth :10.2 inch
Height :3.5 inch
Weight :22.05 lbs
Dimensions & Weight (Shipping)
Shipping Width :21.1 inch
Shipping Depth :14.6 inch
Shipping Height :7.3 inch
Shipping Weight :26.46 lbs
Environmental Parameters
Min Operating Temperature :-34.6 degree Fahrenheit
Max Operating Temperature :165.2 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
