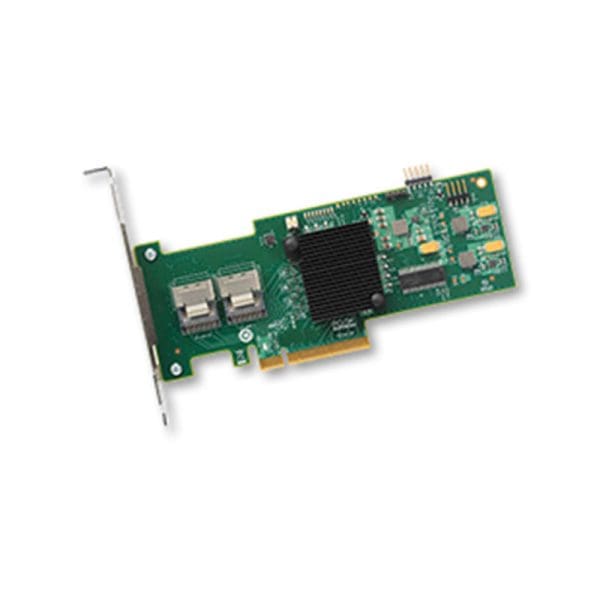

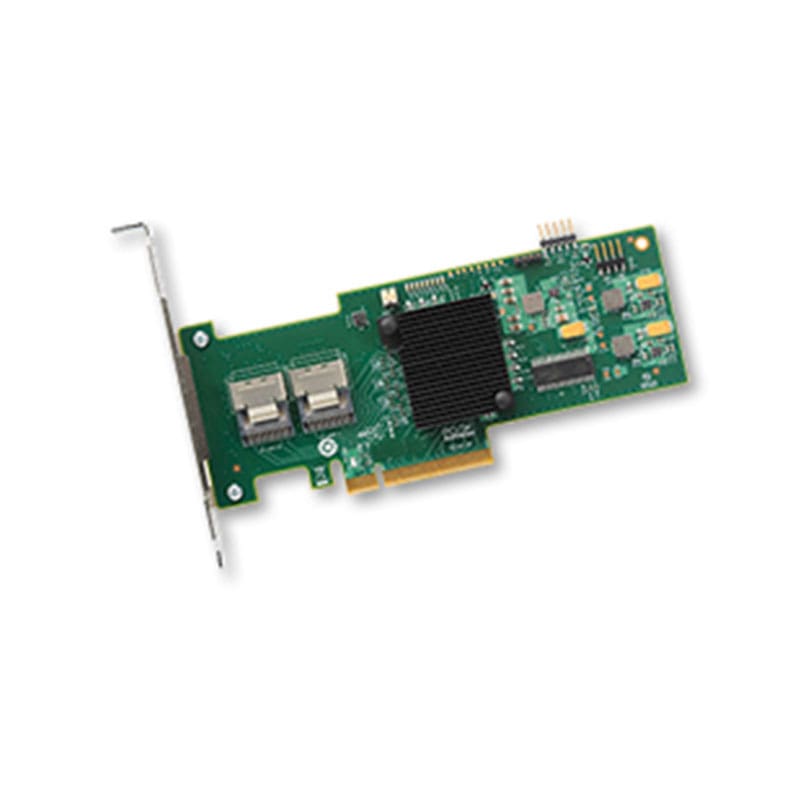

YCKHM Dell LSI 9210-8i 8-port, SAS+SATA 6GBPS TO PCI Express
YCKHM Overview
In the world of storage solutions, the Dell YCKHM LSI 9210-8i takes center stage as an 8-port PCI Express (PCI-E) Integrated Serial-Attached SCSI (SAS) and Serial Advanced Technology Attachment (SATA) Host Bus Adapter (HBA). This comprehensive guide aims to provide a detailed exploration of its features, specifications, and the benefits it brings as a low-profile storage solution.
$55
YCKHM Technical Specifications
LSI 9210-8i 8-port, Peripheral Component Interconnect Express Integrated Serial-Attached SCSI (SAS)-Serial Advanced Technology Attachment 6 Gigabytes Per Second Host Bus Adapter
Manufacturer: Dell
Part Number or SKU# YCKHM
Product Type: SAS/SATA Controller
Interface Type: Host Bus Adapter
Technical Information SAS-SATA Controller
Host Bus Type: x8 Lane PCI Express 2.0
Devices Supported: 256 Non-RAID SAS/SATA Devices
Fusion MPT Support: Fusion MPT 2.0
Internal Connectors: 2 Mini-SAS SFF8087 (Vertical)
Operating Temperature: 0°C to 55°C
Operating Voltage (V): +12V +/-8%, 3.3V +/-8%
PCI Power: 7W Typical (Airflow Min 200 LFM)
Cable Support: Passive Copper
I/O Controller: LSI SAS2008
MTBF: > 2,000,000 Hours
