YNFDG Technical Specifications

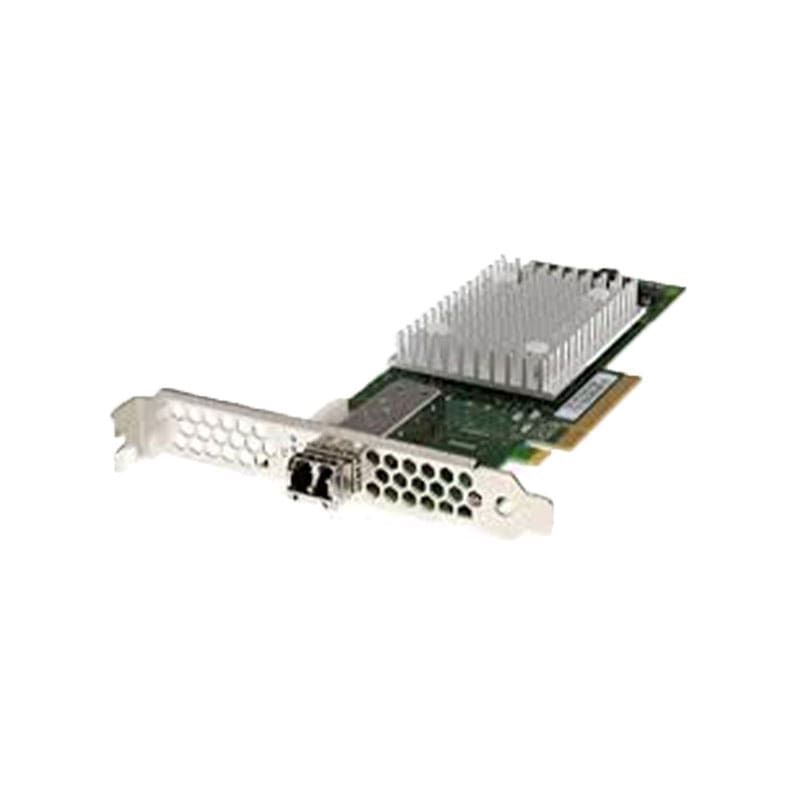

DELL QLE2690-DEL 16GB Single Port PCIe 3.0 X8 FC Host Bus Adapter FH
Manufacturer: Dell
Brand: Dell
Interface (Bus) Type : PCI Express 3.0 X8
PCI Specification Revision : PCIE 3.1
Ports: 16gb Fibre Channel X 2
Expansion and Connectivity
Connectivity Technology : Wired
Data Link Protocol : 16GB Fibre Channel
Fibre Channel : FC-GS-2, FC-GS-3, FC-TAPE, FCP-2, FC-PI-5, SCSI-FCP
Data Transfer Rate : 16 GBPS
Remote Management Protocol : SMI-S, CLI
Environmental Perameters:
Min Operating Temperature : 32 °F
Max Operating Temperature : 131 °F
Humidity Range Operating : 10 – 90%
Dimensions & Weight
Depth : 6.6 Inch
Height : 2.7 Inch
