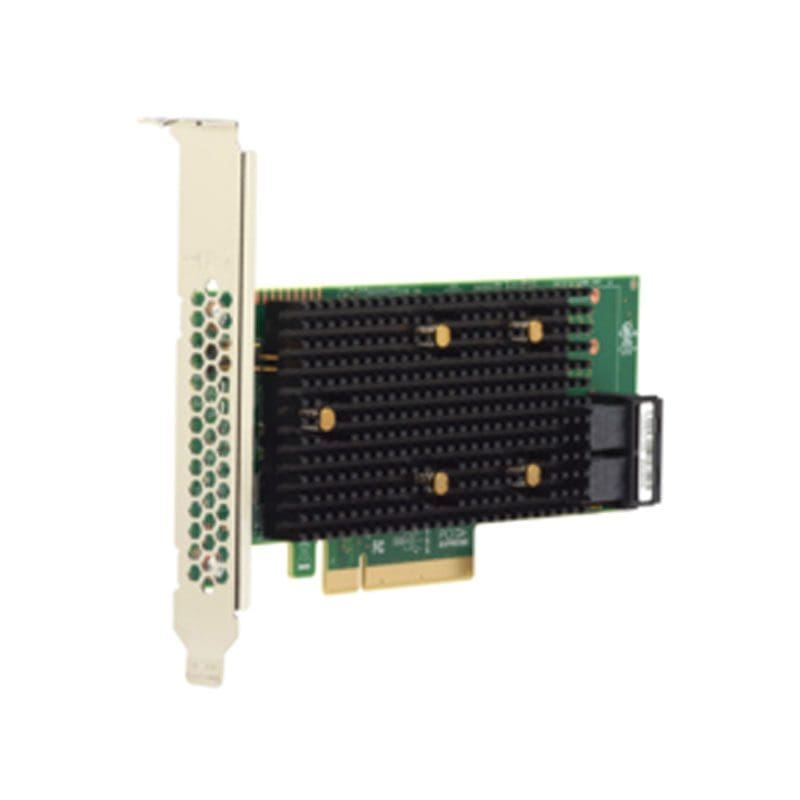

YW3J6 DELL Broadcom 12gb/s Sas/sata/nvme Tri-mode Raid Controller

YW3J6 Technical Specifications

DELL Broadcom 9440-8i 12gb/s Sas/sata/nvme Tri-mode Pcie Raid Controller

Physical Dimensions Low Profile 6.127” X 2.712”
Host Bus Type X8 Lane Pci Express® 3.1
Internal Ports 8
Raid Management Software Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)
Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.
Devices Supported Sas/sata: 63, Nvme: 4 X4, Up To 24 X2 Or X4*
Internal Connectors 2 Mini-sas Hd X4 Sff-8643
Operating Temperature 10° To 55° C
Operating Voltage(v) +12v +/-8%, 3.3v +/-9%
Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver Or Software Support. See Www.broadcom.com/support/down-load-serach For Details On Versions.
I/o Processor / Sas Controller Sas3408 I/o Controller (ioc)
